Bottom rail continuing through inner posts

Tracey Sharples
Contributor

Good morning!

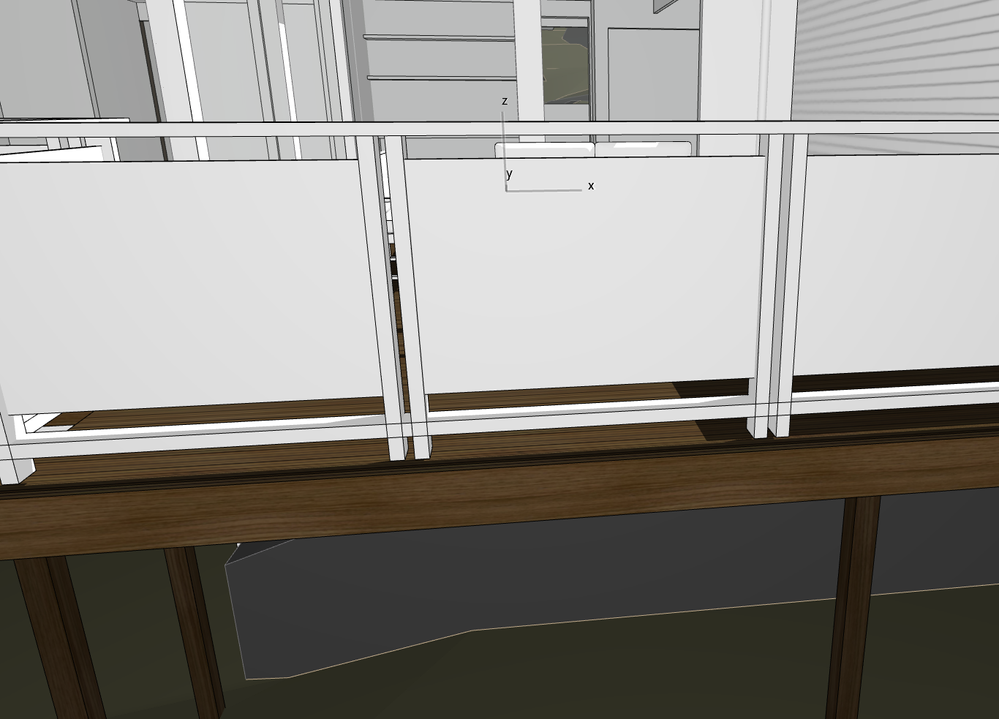

I am having trouble with the bottom rail of my railing. I have two inner posts and the rail is continuing through the posts. I would like the rail to be restricted to the section with the panel in it - so not between the two posts.

I am working in Archicad 26.



Thank you!



Screenshot 2023-09-06 070204.png

Archicad 26 Win11
5 REPLIES 5
rgarand
Booster

I had a similar problem in the past. See this post.



https://community.graphisoft.com/t5/Modeling/Railing-Tool-Custom-Inner-Post-is-not-interrupting-rail...



Robert J. Garand
ArchiCAD USA 27-Build 5001 USA FULL
Windows 10 Prof (64 bit) - Intel i9-10920X CPU 3.50 GHz - 128 GB RAM - NVIDIA Quadro RTX 5000

I am not sure the Solid Element Operation trick will work in this case as there is not top or bottom to the post above or below the gap.

So a small flat joining piece would have to be added to the top of the custom post (it will hide under the top rail) and then it could SEO with downward extrusion.



Barry.



PS I edited the link in your post as it didn't work.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Also it would need to be a custom post as in rgarand's example.

A custom post with a joining plate at the top.



Two inner post will not be able to cut the gap in the middle.

Unless that is created as a separate rail between those post.

Then you can go into 'Edit' mode, select the rial between the posts and delete it.



But if it is all one rail, then a custom double post with the plate at the top and SEO (downward) will fix it.



Barry.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thank you! I think something along those lines will work!



Archicad 26 Win11

Between this and rgarand's input I think I can get it to work. Thank you!

Archicad 26 Win11
