Compound (angle & slope) is twisting my profile

4hotshoes
Advisor

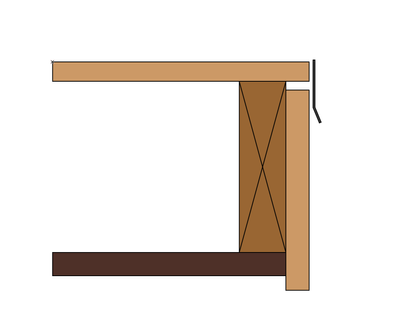

I created a roof edge with complex profile. It is straight and simple. But the roof edge is angled.

Screen Shot 2023-08-24 at 2.18.29 PM.png

 I placed this profile with the beam and railing tools. I get similar and unsatisfactory results.

Screen Shot 2023-08-24 at 2.17.53 PM.png

 The profile becomes twisted or distorted as shown in this middle image cut in section. Below is the 3D image of the roof and profile with the railing tool used.

Screen Shot 2023-08-24 at 2.17.27 PM.png

 Is there a way to make this profile to be shown as I have designed it without being distorted? Even a simple rectangle will distort. Maybe the only way is to create this with multiple small roofs? I hope not.
