Hidden line view port in Archicad

Manny760
Participant

Hi I normally never post anything in any forms so excuse me for any typos or any confusion.



I am revit user and for my new job I am currently learning ArchiCad. There is a view option in revit where it just gives you line and nothing else is shown that is necessary. Called hidden line as I worked it was easier to me to understand what was going on so now that I am transitioning and constantly seeing finishes is really slowing me down is there a way to just see the objects with fills?

3 REPLIES 3
Eduardo Rolon
Moderator

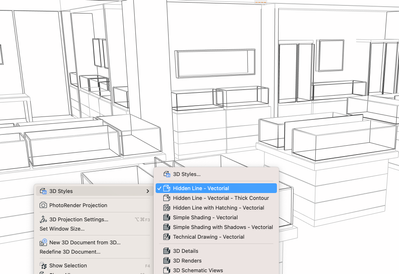

Like this?


If so, right click in 3D Window



Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

Lingwisyer
Guru

Ignore all the glass display boxes in Eduardo's image.

AC22-28 AUS 3110Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win11 | R5 2600 | 16GB | GTX1660

@Lingwisyer wrote:

Ignore all the glass display boxes in Eduardo's image.


🤣
