Problem with CLERESTORY

Anonymous · ‎2012-07-05

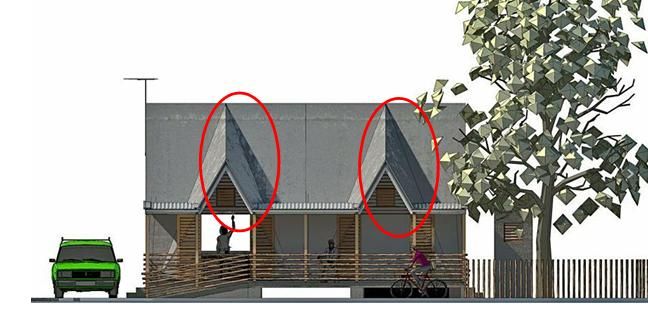

I must to draw these clerestory (hope the name is correct), in two different projects. Can someone explain me with pictures how to proceed?
I have only Archicad 11.
thanks

Anonymous · ‎2012-07-05

Picture 2

Anonymous · ‎2012-07-05

Picture 3

Erwin Edel · ‎2012-07-05

In ArchiCAD 11 you could sort of make the shape with a slanted profiled beam (custom profiles). I say sort of, because the actual profile cut of such a roof isn't the same shape extruded.

It's not an easy thing to model.

This approach would require quite a bit of solid element operators to cut the 'roof' to the shape needed.

Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-26NED FULL
Windows 10 Pro
Adobe Design Premium CS5

Erika Epstein · ‎2012-07-06

Number 1 & 2 you make with the roof tool. The trick is getting the slop direction correct, try with it 45 deg relative to the x,y,z planes.

Number 3, in the skylights there is an eyebrow dormer which is the shape you want.

Erika
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System

"Implementing Successful Building Information Modeling"
