Wall End refuses to clean up

Rene Pahlavan
Enthusiast

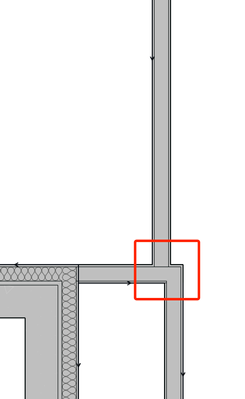

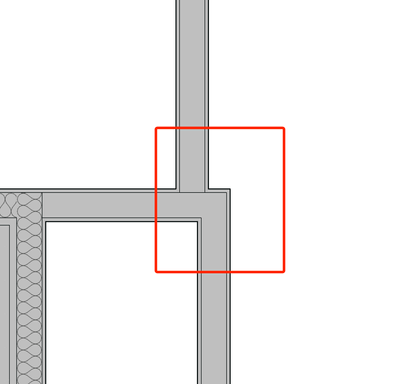

Not sure how to solve this or why it is happening. All the interior walls are cleaning up well in plan except for this one junction (see attached picture). Same layer, same junction order, and I have played around endlessly with the reference lines, and still, there is a line appearing at the junction. If I move the wall more to the left, the line disappears; but close to that corner, I cannot get rid of it.

Screenshot 2023-12-18 at 10.10.38.png

Screenshot 2023-12-18 at 10.11.26.png

  

AC27 (Apple Silicon)

macOS Sonoma 14.1.2.

MBP M3 Max (16-inch 2023)
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

Got it, although I don't think this should have an effect (i.e. bug?).

The same skins should still merge.

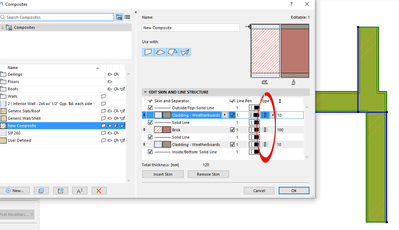

The difference with the new composite I made is I didn't set the outer skins to 'finish' or 'other'.

They were all 'core'.






Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

41 REPLIES 41
Todd Thomas
Contributor

Hi,

I can't tell you why it is doing it but if you flip the horizontal wall so the ref line is at the top it should fix it.



Archicad 26

Intel I7-6700k @ 4GHZ

32GB RAM

Windows 10 Pro

Archicad 26
Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz 4.00 GHz
32GB RAM
Windows 10 Pro
Eduardo Rolon
Moderator

The 2010 workaround should still work:



https://onland.info/archives/2010/07/fixing_wall_corners_with_columns.php

Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

Hi Todd--

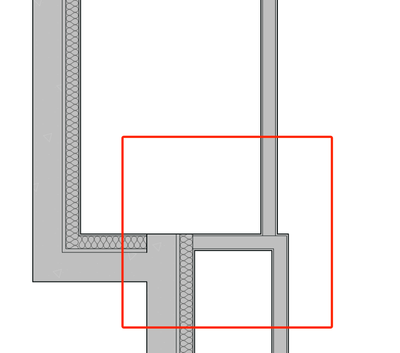

I accidentally accepted your response as the solution - but it is not. Like I said, I have tried every reference line scheme, and all this one does is make the exterior concrete/furred wall act strangely too (the vertical wall keeps going even when intersecting with the horizontal one i.e. this corner doesn't clean up correctly either

). See below:



Screenshot 2023-12-18 at 17.02.33.png

Screenshot 2023-12-18 at 17.02.55.png

Screenshot 2023-12-18 at 17.07.19.png

AC27 (Apple Silicon)

macOS Sonoma 14.1.2.

MBP M3 Max (16-inch 2023)

Nifty trick Eduardo! Thanks for the link.



I have composite walls, so setting the column to be the same material as the wall is not an option in this case. However, I did the experiment of converting the composite walls to basic structure, and the problem goes away then.  I wouldn't accept this as a solution.



Screenshot 2023-12-18 at 17.27.59.png

AC27 (Apple Silicon)

macOS Sonoma 14.1.2.

MBP M3 Max (16-inch 2023)

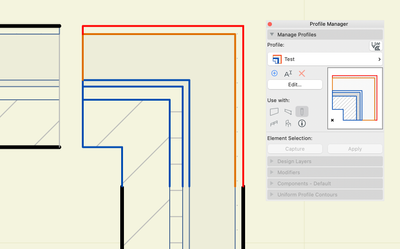

This is why you will use a composite column to solve this kind of case.
