Modeling
About Archicad's design tools, element connections, modeling concepts, etc.

radius of arch?

Not applicable
Hello.
How can I please measure the radius of an arch in Archicad?
Thank you.
6 REPLIES 6
Link
Graphisoft Partner
Sure just use the radial dimension tool.

Or the Measure command. If you hover over the arc, it's centre point should show as a cross. Measure from that to the edge of the arc.

Cheers,
Link.
Not applicable
Thank you. I managed to do it.
Not applicable

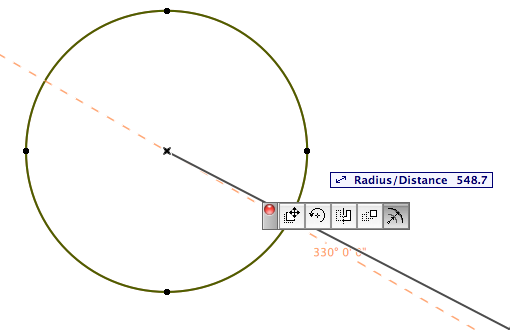

Another way is to select your arc and stretch with the Radial Stretch button on the pet palette, hover over the arc and the radius will display in the tracker. (Screen capture a bit crazy because the figures change while I'm trying to snap the image, but you get the idea).
undefined
Not applicable
Thank you for the answer. I tried this, but it only displays the angle, cord and arc length.
undefined
Link
Graphisoft Partner
Clicking on a node, gives you a slightly different pet palette.

You should try clicking off a node, or hit tab and tab through the tracker until the Distance appears.

Cheers,
Link.
Not applicable
Now I got it. Thank you.
