splayed / angled window openings
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-15
05:10 AM
- last edited on
2023-05-23
05:06 PM
by
Rubia Torres
I know there is a splayed reveal object but with no window. I have tried placing the window I need inside of the opening but the display is messy and needs 2d patching. Any better ideas?
Thanks, Matt
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-15 05:57 AM
Do you mean that you have to mask the edges of the opening
when you use the splay niche opening and if you have a hatch pattern
cut fill in your wall you have to put a fill between the outside
edge of the casing and the outside of the frame of the window
you are placing in the opening ?
Peter Devlin

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-15 06:06 AM
If you mean a window with a splayed opening to the outside there was a discussion of this within the past year about just that for a window in a stone wall. It involved a splayed window and some SEO operations on the outside if I recall correctly. A search may pull it up.
AC 19 6006 & AC 20
Mac OS 10.11.5
15" Retina MacBook Pro 2.6
27" iMac Retina 5K

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-15 06:08 AM
If you mean a window with a splayed opening to the outside there was a discussion of this within the past year about just that for a window in a stone wall. It involved a splayed window and some SEO operations on the outside if I recall correctly. A search may pull it up.
AC 19 6006 & AC 20
Mac OS 10.11.5
15" Retina MacBook Pro 2.6
27" iMac Retina 5K
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-15 12:49 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-16 04:10 AM
That was the topic I was thinking of, I just did not have time to find it just then.
AC 19 6006 & AC 20
Mac OS 10.11.5
15" Retina MacBook Pro 2.6
27" iMac Retina 5K
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-17 09:07 PM
eah, that double chamfer looks like a bear to do.
You guys are lucky at least to have the single side chamfer. The US library only has an empty opening which has to be added to and aligned with an actual window.
Aside from making custom windows or working with SEOs and patches, the only fairly simple way to do it is to put two walls back to back and align the window in one with an empty, chamfered opening in the other.
_________________
Matthew Lohden
Consultant
North Bay Area, California
MacBook Pro 17"
MacOS 10.4.9
WinXP SP2
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-18 02:28 AM

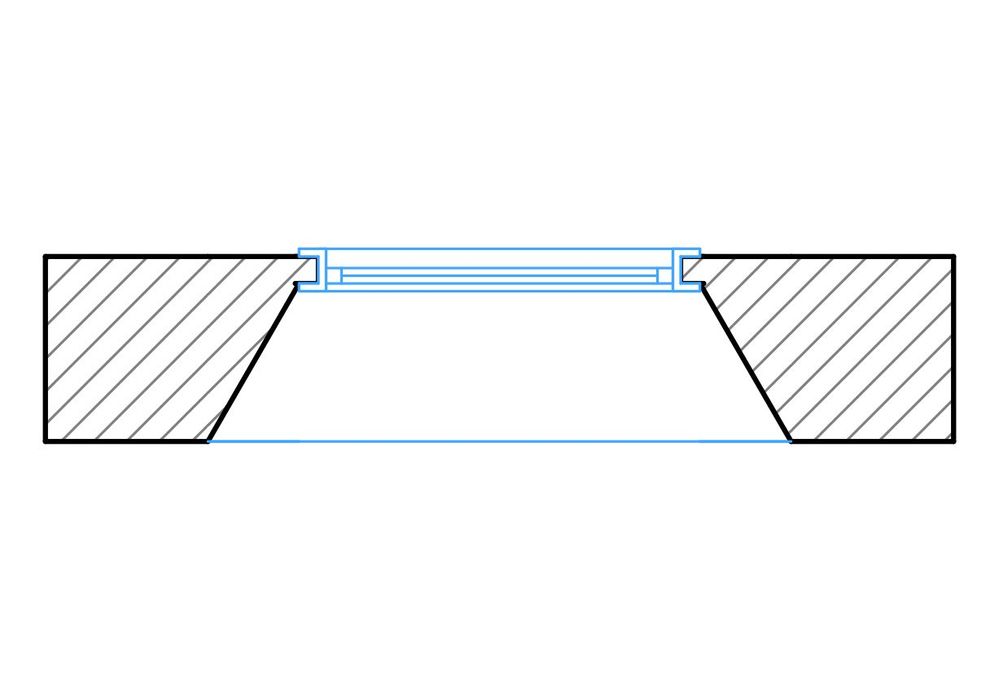

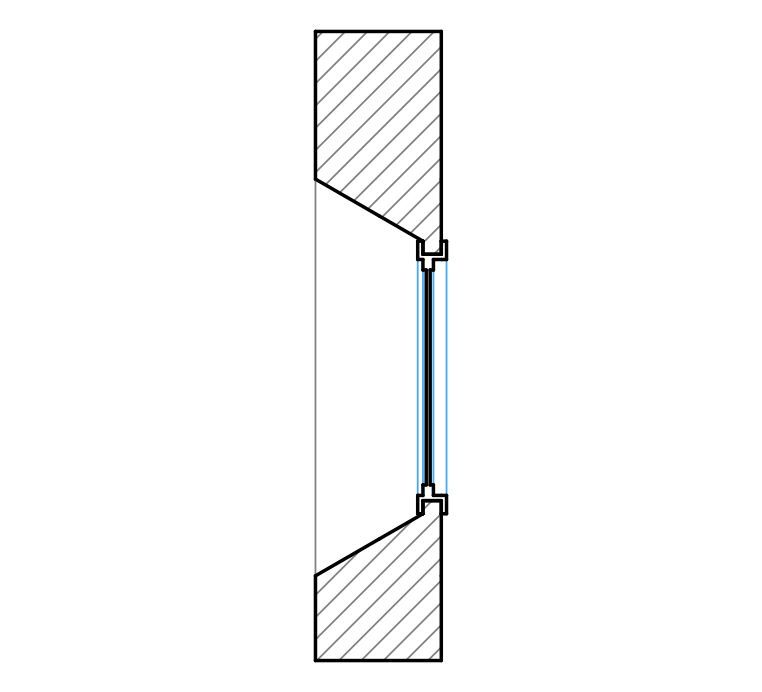

splay reveal we have is the following.
Draw the thick wall, and insert the
w splayed reveal 10 opening into the wall.
Set the splay angles, opening dimension,
and frame depth you want. Draw another wall
that is set to the thickness of the frame depth
set in the splay reveal parameters,
is as high as the opening, and base elevation
set to the height of the sill of the opening.
Disable both wall ends and draw this wall
in the opening and bring it forward one step.
Now stretch both ends of this wall slightly
so that it's ends just mask the opening's contour lines.
Insert an ordinary window into the thin wall.
Peter Devlin
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-18 02:29 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2007-08-19 12:04 AM
Thanks, Matt
