Slab level

Llian
Participant
Hi,
I am working on a single home that has many interior split levels. I want to show on the floor plans the various slab thicknesses and levels relative to the storey levels.

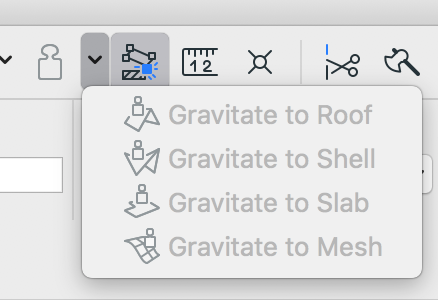

I have used the Level tool but it shows only the slab thickness. I tried the Gravity tool but it is greyed out. Can anyone help me with this?
Lilian Seow
LEED AP | cSBA
Interior-Architecture and BIM Management
AC20 USA | 27- macOS 10.13.6| BUILD 6005 |4 GHz Intel Core i7| 32 GB RAM | Archicad-user since 1994!
1 REPLY 1

Bruce
Booster
If you are working in a model plan view (not a worksheet or detail view), and have the Level Dimension tool active (the cross hairs one), the gravity tool should be activated.

Another way is to use the Label tool - it has more flexibility over what to show, including RL and thickness within the one label.
Bruce Walker
http://www.brucepwalker.com
https://www.mindmeister.com/65450406

-- since v8.1 --
AC22 6025 INT Full | macOS Mojave 10 | 3.2 GHz Intel Xeon W | 32 Gb RAM | Radeon Pro Vega 56 8 Gb
