Autotext Roof Pitch

Brandylee341
Participant

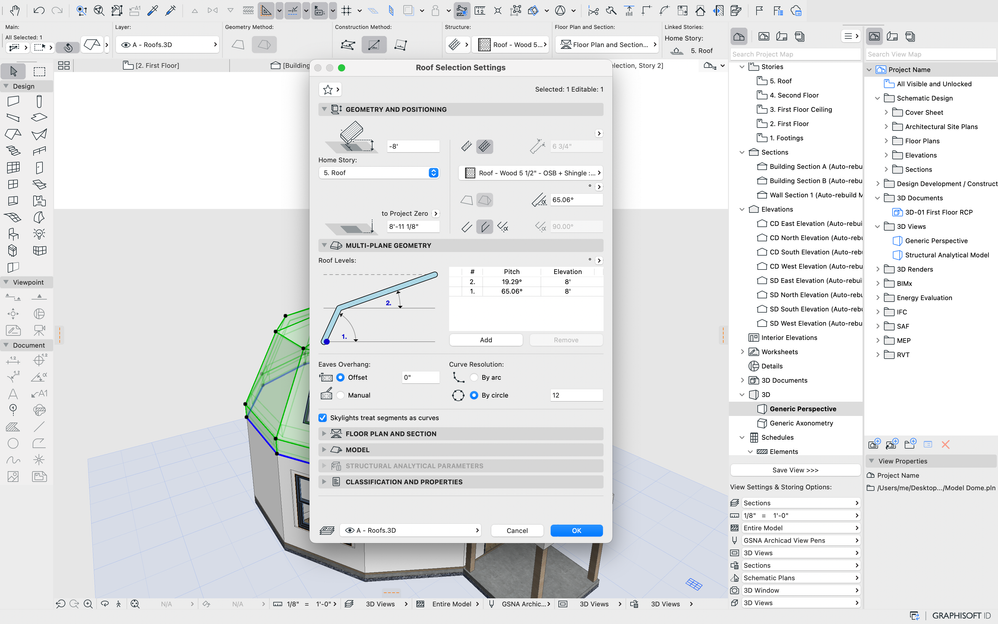

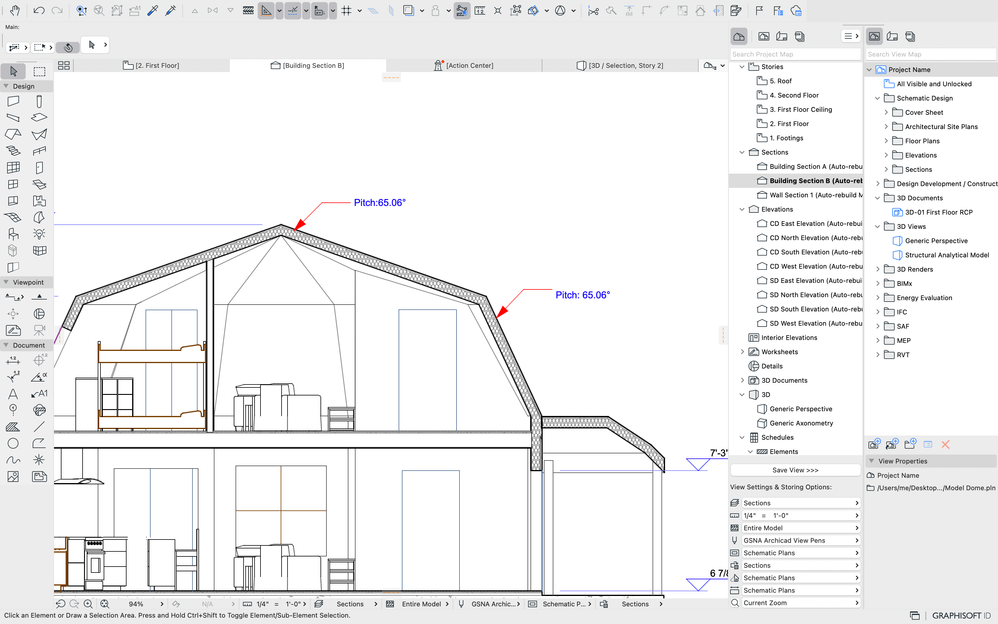

Why is my autotext roof pitch label only showing my lower roof pitch on my multiplane roof?



Screenshot 2023-10-12 at 2.55.20 PM.png



Screenshot 2023-10-12 at 2.58.19 PM.png

  

3 REPLIES 3
4dProof
Advisor

I don't think that label can process the variable pitches and pitch breaks. The same problem if you have a hip roof with 1 face at a different pitch than the roof default. you would need split into single plane roofs (right click function) in order to correctly apply the label to each roof face.

BIM solutions and trouble shooting (self proclaimed) expert. Using Archicad 26 5002 US on Mac OS 11.5.2
Barry Kelly
Moderator

As 4dProof said, I think the label is only picking up the main roof ptitch.






Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Just curious, but why do you need to keep those roofs as a multi-plane roof?
