Round column not showing in 3D

Johann_P
Advocate

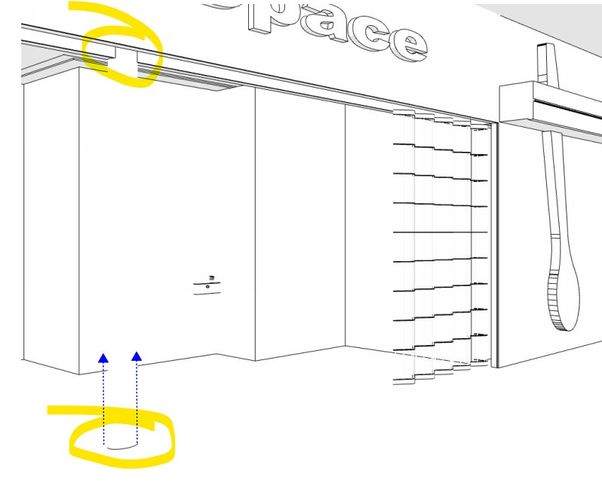

I have some round columns who's edges seem to not show on 3D.



The column is there, but the edges seem to be white.

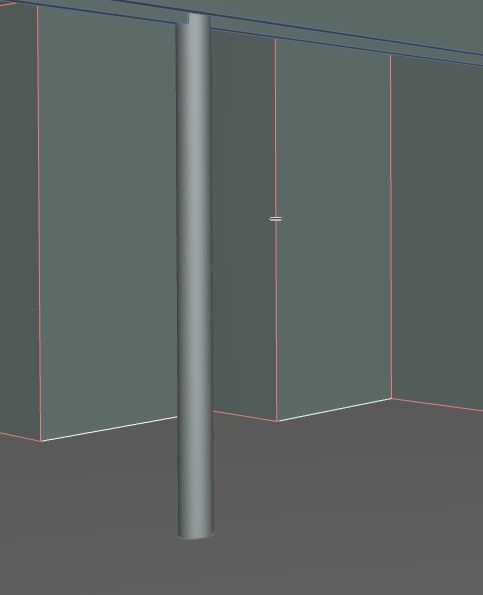

This visibility is set to "White Model", but when I change it to "simple shading" the column is clearly visible.



Does anybody know how I can change this to be visible in "white model"?















ArchiCAD24 - since Nov 2020
Revit - 2005 to 2020
Windows 10 Pro
2 screens: nvidia quadro RTX 4000
2 REPLIES 2
DGSketcher
Legend

@Johann_P

You might need to change your contour settings...

See this... 3D Styles



Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)
runxel
Legend

This is sadly a weird limitation with the OpenGL engine in Archicad. I mourn every time I see this.

I hope this will be fixed at any point in the future.

Lucas Becker | AC 27 on Mac | Author of Runxel's Archicad Wiki | Editor at SelfGDL | Developer of the GDL plugin for Sublime Text | My List of AC shortcomings & bugs | I Will Piledrive You If You Mention AI Again |

POSIWID – The Purpose Of a System Is What It Does /// «Furthermore, I consider that Carth... yearly releases must be destroyed»
