Solid Fills do not hide what is behind when publishing to PDF - Interior Elevations

annabrodersen
Participant

Have had this issue for years and finally frustrated enough to post about it. The way I do Interiors is placing a solid fill over the room, only highlighting the extents of the elevated wall. On the layout, it appears fine. Transparent background is NOT checked, and still when publishing, weird lines from the section elements behind the fill show. I reduce the crop, mess around with it, it is random how it behaves and sometimes will fix but most of the time it will not. Any help is much appreciated!

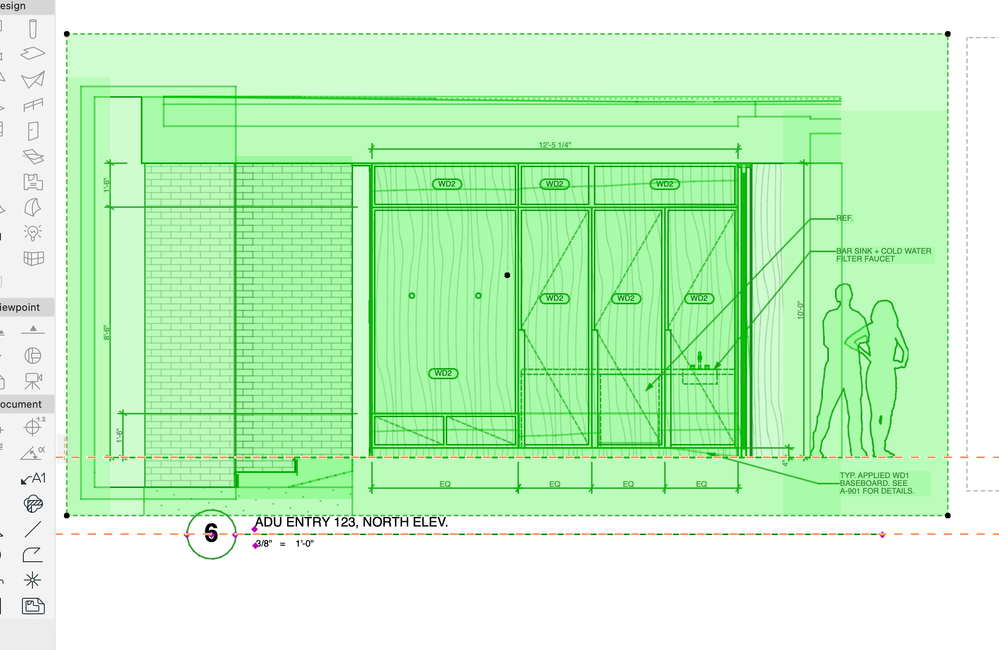

Screenshot 2023-09-21 at 9.20.31 AM.png



Screenshot 2023-09-21 at 9.21.33 AM.png



Screenshot 2023-09-21 at 9.21.43 AM.png

2 REPLIES 2
annabrodersen
Participant

Using macOS, Archicad 26, but have had this issue with 23, 24 as well.

rmp
Beginner

Hi/ I am experiencing the same problem with my elevations, any updates?
