Hi all,
sorry for my english, it might be difficult to understand.

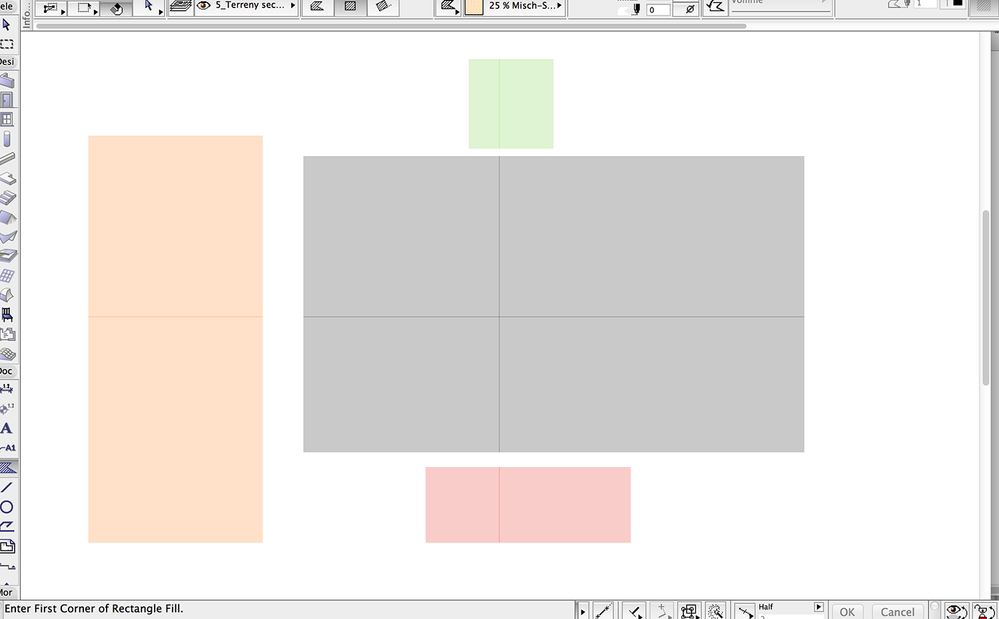

When creating a fill with transparency, a 'helping' grid appears marking the center of the screen (vertical and horizontal axes). When I move the view, the axes move always along. I attach a picture.

It is very annoying for clients to see this on the screen. I have tried to turn off all the View---Trace/Guide/Grid Options, but it is still there.

Does someone have any suggestion on how to turn it off?

Thanks in advance,
17 REPLIES 17

Could be the fill handles.

Go to: View > On Screen View Options > Fill Handles
Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-24 NED FULL
Windows 10 Pro
Adobe Design Premium CS5

Anonymous
Not applicable
No, they are disabled...

Try: View > Grid Display

That might be it
Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-24 NED FULL
Windows 10 Pro
Adobe Design Premium CS5

Anonymous
Not applicable
All View options are disabled. Picture:

Rightclick ruler and turn of cursor projection? I'm running out of ideas here
Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-24 NED FULL
Windows 10 Pro
Adobe Design Premium CS5

Anonymous
Not applicable
It doesn't work
Thank you for your help Erwin

luciant
Newcomer
I have the same problem as do others in my office. Have not found a solution. We are all on Macs.
IMac OS X 10.13.5
4 core Intel 3.4 Ghz, 16 GB Ram,
AMD Radeon HD 6970M
Archicad 15, 16, 17, 18, 19, 21, 23

Laszlo Nagy
Community Admin
Community Admin
Could it be a graphics card driver problem?
You guys might try updating to the latest driver, hopefully that helps.
....................................................................................................
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC25
Loving Archicad since 1995

DGSketcher
Rockstar
I get it on my Mac as well. Not a problem, easy to ignore and I've never seen it affect my output. I'm sure it is a graphics issue rather than some AC entity manifesting itself.
Apple iMac macOS Monterey / AC25UKI (most recent builds)

Brad Elliott
Contributor
Yep, on my Mac as well. I also just ignored it though now I'm seeing it again after reading this.
Mac OS10.13.6 AC23 USA Full

Hackintosh 4 GHz i7 32gb ram NVidia1060

Erika Epstein
Booster
Same here on my macs. I only see the grid when a fill(s) is selected. Not visible when printing as pointed out by others.
My graphics card is
NVIDIA GeForce GT 750M 2048 MB
Erika
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System

"Implementing Successful Building Information Modeling"

Anonymous
Not applicable
This is an unacceptable issue in a DRAFTING PROGRAM. PHANTOM lines are a HUGE distraction when in plan section or elevation. This needs to be addressed soon. I have been told that it was a Mac OS issues from tech support. That was like two years ago(VERSION 18). Happens on all my Apple machines (iMacs, Laptops, Towers, Cinema Displays and Retina displays. We work with lines all day. The last thing I need are a bunch of crap confusing an already complex drawing.
A preemptive thanks for making an awesome product better.
A LOYAL user since 8

Stress Co_
Expert
Appeared when I upgraded to AC 18.

I just tested and it doesn't occur in AC15, AC16 or AC17,
but it does in AC 18, AC19 and AC20.
Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina)
Processor: 3.6 GHz 8-Core Intel Core i9
Memory: 48 GB 2667 MHz DDR4
Graphics: Radeon Pro 580X 8GB
ArchiCAD 25 (5005 USA Full)

Anonymous
Not applicable
I have noticed that this occurs when % fills are used.
Have not noticed it on my PC but have on Mac (differing OSs with different display subsystems), similar issue also visible when viewing transparency on PDF in Acrobat so probably not AC problem
Scott

Katalin Borszeki
Graphisoft
Graphisoft
Hi All, this issue is caused by a bug. Its entered into our database to be fixed with a high priority! Thanks, k
Katalin Borszeki
Implementation Specialist
GRAPHISOFT

http://helpcenter.graphisoft.com - the ArchiCAD knowledge base

Stress Co_
Expert
Disappointing to find this is still an issue with AC21.
Somewhere along the line, it got worse... instead of just the X & Y axis, there
is now: A axis & multiple Y axes.
Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina)
Processor: 3.6 GHz 8-Core Intel Core i9
Memory: 48 GB 2667 MHz DDR4
Graphics: Radeon Pro 580X 8GB
ArchiCAD 25 (5005 USA Full)

Stress Co_
Expert
Fixed with AC22
Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina)
Processor: 3.6 GHz 8-Core Intel Core i9
Memory: 48 GB 2667 MHz DDR4
Graphics: Radeon Pro 580X 8GB
ArchiCAD 25 (5005 USA Full)

Still looking?
