How to generate\create colored floor plan for presentation from normal archicad plans?
I have attached a sample image of my requirement.

coloured plan.jpg
10 REPLIES 10
Laszlo Nagy
Community Admin
Community Admin
You can use Image Fills.
Search in the Help File for "Image Fills".
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
Anonymous
Not applicable
You may refer to any of these links for suggestions on how to achieve your colored floor plan:

1. Do it in Photoshop

2. Karl's Piranesi/Axo suggestion

3. Various Techniques
Rakela Raul
Participant
great !!
MACBKPro /32GiG / 240SSD
AC V6 to V18 - RVT V11 to V16
Anonymous
Not applicable
The easiest approach is to use simple cover fills.
Anonymous
Not applicable
Martha Calderon's illustration work.
In a "Design Graphics" July 2001, article she talks
about her process. At that time it was strictly a
2D linedrawing import with lots of Photoshop.

I think you can easily see how to get her look in far less
time with AC today + minor Photoshop.

Snap
Anonymous
Not applicable
laszlonagy wrote:
You can use Image Fills.
Just asking...

Is possible to assign a slab a fill and see the image fill in some plans and a vector fill in other ones?

Or see the vector fill in plans and image fill in 3D views? In a top plan?

Sometimes is useful to have some plans in line and other ones filled with patterns...

Thank you!!
David Maudlin
Rockstar
Diana wrote:
Or see the vector fill in plans and image fill in 3D views? In a top plan?
This can be done by using a Cover Fill for the 2D (Plan) view, and textures with the OpenGL Engine (or PhotoRendering) in the 3D Window, including Parallel Projection Setting > Top View for a Plan view in the 3D Window.

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14

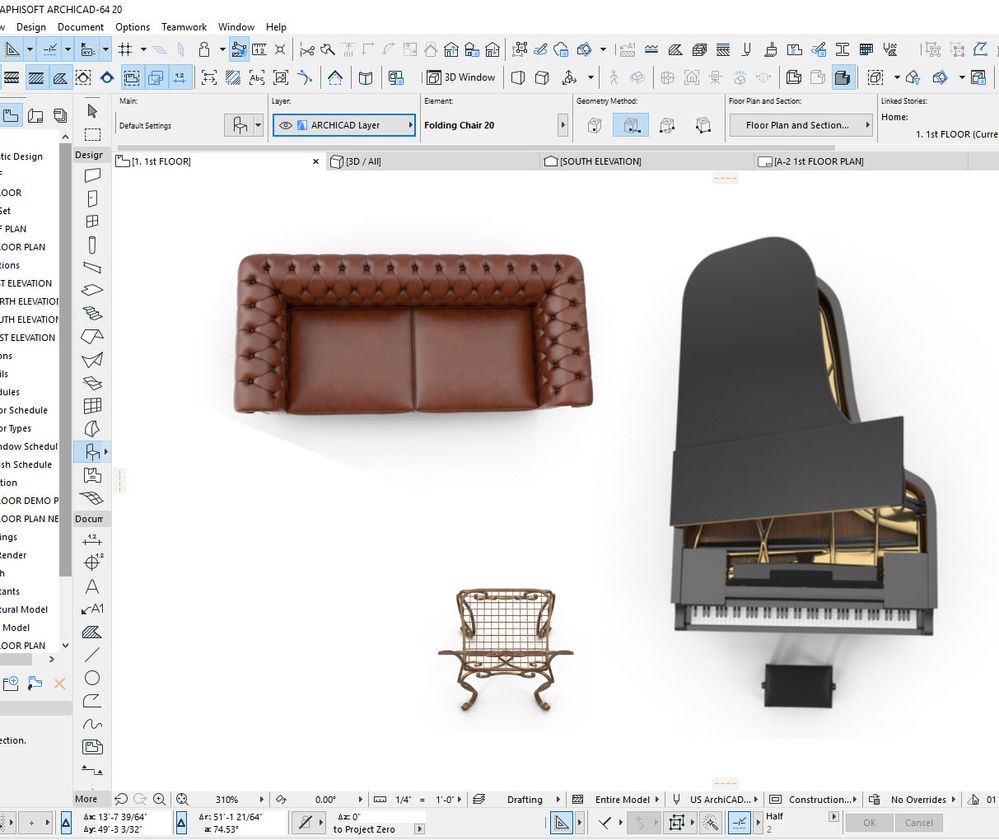

check out https://www.pixelsquid.com/ which is mostly for use with Photoshop.

Just a simple screen shot of these can be used in ArchiCAD.

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

quick and easy at - with a white floor that is.

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25
