Hello Archicad Community,

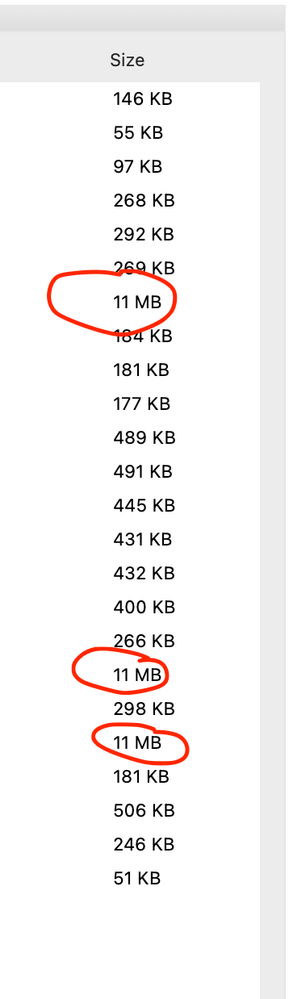

 I'm working on a project that has about 20 drawings. These are large/complex plan drawings of a full floor of a tower block, full of partition walls, offices, chairs etc. When I export the drawings, the majority export as PDF between 200-500KB, with three drawings in the package exporting at 11MB.



 I can't figure out why these three drawings are coming out so large, and the architect I'm working for is persisting with me that I need to reduce the file size.



So far I have:



 - Consolidated Lines (rid of thousands of lines)

 - Consolidated Fills & Deleted unnecessary

 - Deleted everything that isn't required

 - Purged layers that are unnecessary

 - Attempted to reduce file size in Acrobat (made file bigger!)

 - Attempted to reduce file size in Apple Preview (Made file bigger!)



 The three drawings are all based off the same level, but not all drawings created from this level are causing the overt size issue. Also, when I work on this level or with the drawing that is placed on the layout, the computer moves incredibly slowly.



 Is there anything that anyone can recommend I try that might help to get the file size down on these three drawings?



 Any assistance would be greatly appreciated.



 Regards,



 Henry.


Screen Shot 2023-02-14 at 8.55.34 pm.png
8 REPLIES 8
mija
Enthusiast

Hi, have you tried pdf options in archicad? Also, could be too much fills honestly...





Archicad 26, build 3001
Montenegro

Hi Mija,

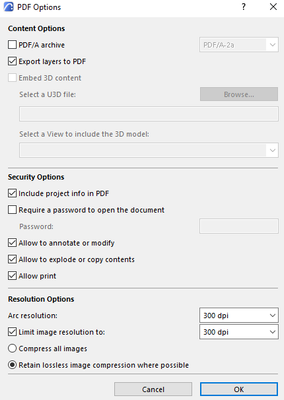

 Thanks for the quick reply! I've just tried the PDF document options, thinking that if I didn't export layers, it may help. Sadly it hasn't made a difference.



 I've just double checked how many fills are in the drawing. There's only 23 fills, solid black, that represent the columns passing through the floors. There are a number of fills that are not part of the drawing (layers that are turned off), so I didn't think they'd impact the drawing?



 Thanks for your help though, it's greatly appreciated!



 Henry!

Large PDF files are usually a symptom of there being images or image fills and complex fills added to the view. Was all the data drawn in Archicad? Sometimes translation of DWG fills can cause file size issues too.

Lee Hankins
ArchiCAD 4.5 - Archicad 27UKI Apple Silicon 27.2.2 | Archicad 28 TP Apple Silicon
macOS Sequoia (15)
henrysaxby
Contributor

I have figured it out!



 There was a 3D object of a planter box that was used in the drawings (in plan view only showing in 2D), that was very polygon heavy. I created a new 2D object that was a basic outline of the planter box. There were 3 of them on each of the 3 drawings that were having issues. The drawings have gone from 11MB to 260KB.



Far more reasonable!



Thanks so much for your input and advice!


Screen Shot 2023-02-15 at 11.38.39 am.pngScreen Shot 2023-02-15 at 11.40.41 am.png

Hello.
I am having the same issue.

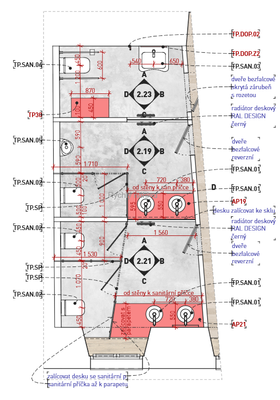

I am using downloaded BIM objects which I use as a reference for interior design project.
Unfortunately the option to lower polygon - does not take the effect to the object.
I also use textures in interior views to clarify the final result. Textures are sesamless about 1000px and everytime under 500kb.



This one PDF takes around 30Mbs. Its too large. I have over 50 of theese.

Any suggestions? Thank you for any help.
Filip



Snímek obrazovky 2024-04-20 232945.pngSnímek obrazovky 2024-04-20 232749.png     Snímek obrazovky 2024-04-20 233530.png

Change the wall and floor surfaces to something that does not have a surface texture.

The see how big the PDF file is.

If it is still a big file, it might be something to do with the objects.

If it is considerably smaller, then it is the wall and floor materials.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
BHU
Contributor

This is not the answer to your question but I have noticed a reduced file size when I use Save As.
Off course its not that practical when you have many files to publish. Is there any different in PDF file size for you if you try Save As... VS Print...?






Win 11 / A25, 5010. Swe. Full & A27. 4060. Swe. Full

Yes, always 'Save' when you publish to PDF, so it uses the built-in PDF converter, rather than using an external PDF converter.
