Wall Disappears when rendered

Dave Seabury · ‎2021-09-07

Haven't seen this one before and I can not figure out what is causing it.

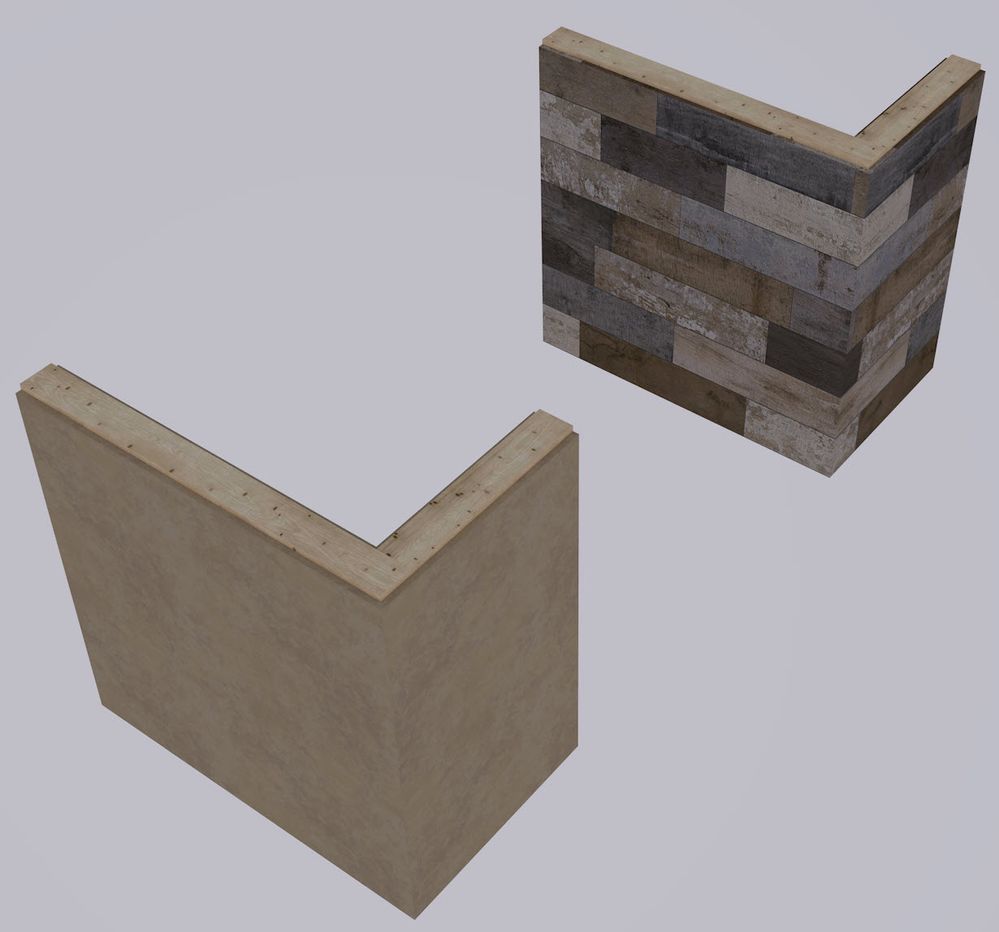

modeling some tile on a shower wall. The tile itself is a separate wall place

on the framed wall. The first image is the 3d window, the tile section on the

left is 1/32"off the other wall form, the one on the right is touching the face of the

other wall and it is gone once rendered. Any ideas?

Thanks David

AC 19-26 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB

runxel · ‎2021-09-07

The result looks like expected 😄

But in good earnest:

The issue you're confronted with is the typical thing that happens when two planes are at the same spot: The computer calculates the z-depth (the distance) of the polygon to the camera. Rounding errors will lead to the result that some polygons are more closer to the camera than others and vice-versa. Thus you're ending with a botched up picture.

tl;dr: Move one plane out of the other.

Lucas Becker | AC 29 on Mac (Sequoia) | Graphisoft Insider Panelist | Akroter.io – high-end GDL objects | Author of Runxel's Archicad Wiki | Editor at SelfGDL | Developer of the GDL plugin for Sublime Text

My List of AC shortcomings & bugs | I Will Piledrive You If You Mention AI Again |

POSIWID – The Purpose Of a System Is What It Does /// «Furthermore, I consider that Carth... yearly releases must be destroyed»

Stress Co_ · ‎2021-09-08

Do the wall reference lines overlap?

That is to say, if the tile "wall" reference line were on the outside face, and

you didn't do the 1/32" offset, does it still happen?

Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina) //// Mac OS 14.5 (Sonoma)
Processor: 3.6 GHz 8-Core Intel Core i9 //// Apple M2 Max
Memory: 48 GB 2667 MHz DDR4 //// 32 GB
Graphics: Radeon Pro 580X 8GB //// 12C CPU, 30C GPU
ArchiCAD 25 (5010 USA Full) //// ArchiCAD 27 (4030 USA Full)

Lingwisyer · ‎2021-09-08

Just give them thickness? And If need be SOE them from the wall?

AC22-29 AUS 3200	Help Those Help You - Add a Signature
Self-taught, bend it till it breaks	Creating a Thread
Win11 \| i9 10850K \| 64GB \| RX6600	Win11 \| 7800X3D \| 32GB \| RTX5070TI

Dave Seabury · ‎2021-09-08

Thanks for all the suggestions, they all worked on one wall but not on another. In the end i created a new profile wall with a tile backer and a finish surface for the tile, then SEO'ed that from the frame wall and it seems to work. Thanks again for the suggestions.

David

AC 19-26 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB

Dave Seabury · ‎2021-09-08

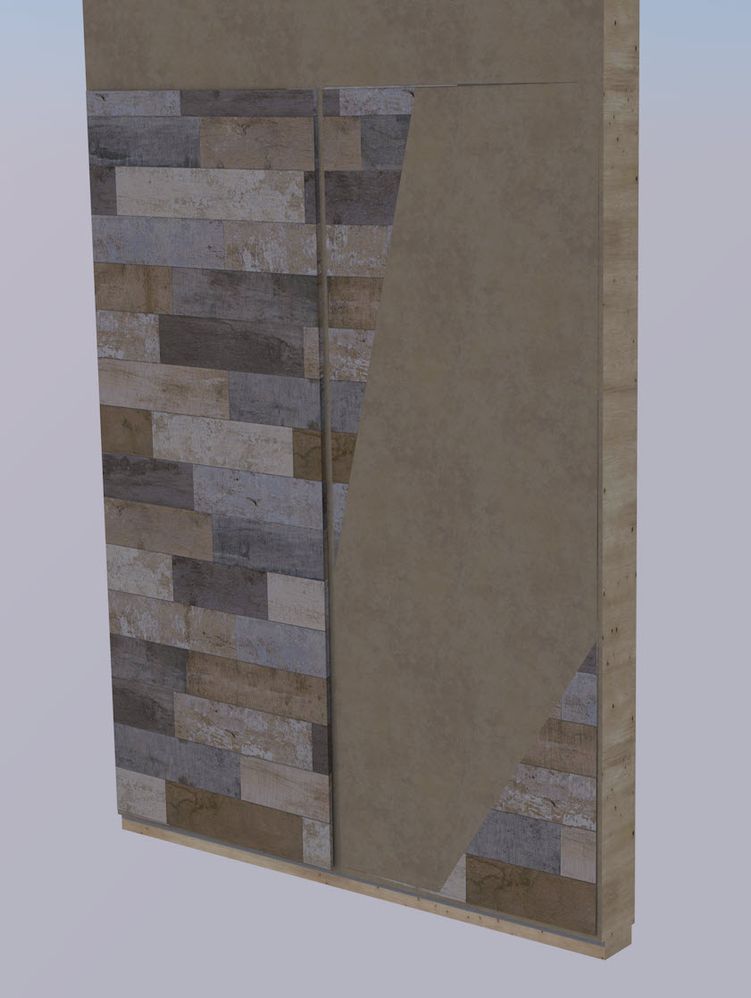

I thought I had this figured out but I don't. Is it possible for a texture to cause these issues or a rendering setting? Everything is perfect in the 3d window But i get this when rendered. The lower wall is a complex profile that i duplicated and changed the surface material. No issues with the lower one.

Thanks Again for any suggestions.

Daviddifferent wall same problem

AC 19-26 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB

Dave Seabury · ‎2021-09-08

It appears to be the texture. Opened the profile and changed to a different tile texture and it rendered as I would expect. Now I will see if i can chase that down.

David

AC 19-26 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB

Dave Seabury · ‎2021-09-08

Solved. This Texture had a Displacement Channel and once turned off The wall renders correctly.

AC 19-26 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB
