What is the first position in the STEP command?

Options

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

2024-01-17 07:19 PM - last edited on 2024-01-18 02:29 AM by Barry Kelly

I'm just testing basic stuff and I have an auto scripted slab and wanted to restrict the A-dimension between 1 and 2 meters and allow only even decimeters and the script below works great no matter what I write...0, 3, 3000... in the parameter script.

values "A" range [1,2] step **0**,0.1

values "A" range [1,2] step **3**,0.1

etc... I get that the second position (in my case 0.1=1 decimeter) is the incremental move) but the first position beats me...

4 REPLIES 4

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

2024-01-17 11:29 PM

It's the start value.

Let's imagine this: `values "foo", sin(30), 4, range(5, 10], 12, range(,20] STEP 14.5, 0.5, custom`

All possible numbers for the parameter "foo" now are:

0.5, 4, 5 til 10 (without 5.00), 12, 14.5, 15, 15.5, 16, 16.5, 17, 17.5, 18, 18.5, 19, 19.5, 20

Lucas Becker | AC 27 on Mac | Author of Runxel's Archicad Wiki | Editor at SelfGDL | Developer of the GDL plugin for Sublime Text |

«Furthermore, I consider that Carth...*yearly releases* must be destroyed»

«Furthermore, I consider that Carth...

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

2024-01-18 05:04 AM - last edited on 2024-01-21 07:12 AM by Laszlo Nagy

the first position in the range/step command is the reference point for the range, the second is the stepping value.

the reference point does not have to be within the range of the RANGE() values.

your 0, 3, 3000 all happen to be multiples of the stepping value so you didn't see any change

Round brackets "(" means don"t include this value in the range , i.e. < or >

Square brackets "[" means include this value in the range , i.e. <= or =<

```
fill fillAttribute_1
poly2_b{5} 5, 3, 1, 3, penAttribute_2, penAttribute_3,
0, 0, 1, 0, 0, 1, 0,
0, 0, 1,
A, 0, 1,
A, B, 1,
0, B, 1,
0, 0, -1
values "A" range[1,2] step 1,0.2
values "B" range[1,2] step 1,0.2
```

note: my working units are mm for this example.

Note: Archicads coding units are meters.

for "A" you have values in meters of

1.0 <- reference point

1.2

1.4

1.6

1.8

2.0

for "B" you have values in meters of

1.0 <- reference point

1.2

1.4

1.6

1.8

2.0

change the range to a starting point for A to 1.110

change the range to a starting point for B to 1.333

values "A" range[1,2] step 1.110,0.2

values "B" range[1,2] step 1.333,0.2

(now this offsets the vales of A by 0.111 and offsets the values of B by 0.133)

for "A" you have values in meters of

1.111 <- reference point

1.311

1.511

1.711

1.911

for "B" you have values in meters of

1.133

1.333 <- reference point

1.533

1.733

1.933

I hope this helps

I have been using ArchiCAD continually since ArchiCAD 4.5, 4.5.5, 5, 5.1, 6, 6.5, 7, 8, 8.1, 9, 10, 11, 12, 13, 15, 18, 21, 22, 25, now testing 27

Member of Architalk since 2003, but missed the migration to Graphisoft.

(where have all my original posts gone?)

Member of Architalk since 2003, but missed the migration to Graphisoft.

(where have all my original posts gone?)

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content

2024-01-18 05:49 AM - last edited on 2024-01-21 07:13 AM by Laszlo Nagy

The first value of the STEP value is the reference point for the range numbers.

with a reference point of 0 or 3 or 3000 then the values will be the same for a stepping value of 0.1, as the are multiples of the stepping number.

the reference point does not have to be within the "RANGE" values.

Script example

```
values "A" range[1,2] step 1,0.2
values "B" range[1,2] step 1,0.2
fill "25%"
poly2_b{5} 5, 3, 3, 3, 1, 1,
0, 0, 1, 0, 0, 1, 0,
0, 0, 1,
A, 0, 1,
A, B, 1,
0, B, 1,
0, 0, -1
```

you get values for A of

1m <-reference point

1.2m

1.4m

1.6m

1.8m

2m

you get values for B of

1m <-reference point

1.2m

1.4m

1.6m

1.8m

2m

if you change the reference point, and step values to:

values "A" range[1,2] step 1.5,0.15

values "B" range[1,2] step 1.333,0.123

you get values for A of

1.05m

1.2m

1.35m

1.5m <-reference point

1.65m

1.8m

1.95m

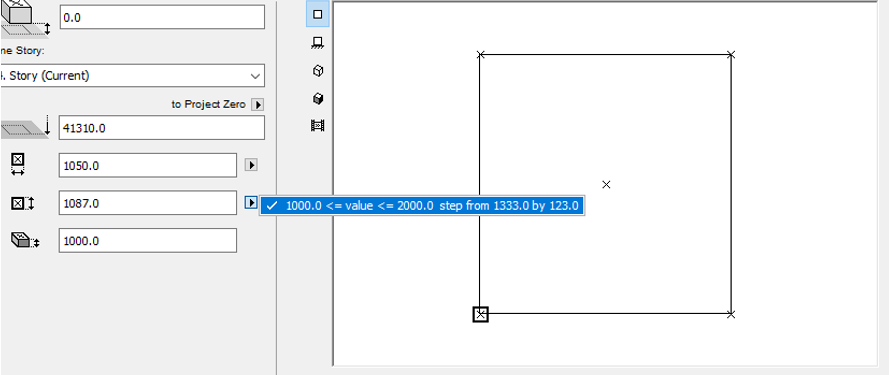

you get values for B of

1.087m

1.21m

1.333m <-reference point

1.456m

1.579m

1.702m

1.825m

1.948m

I hope this helps.

I have been using ArchiCAD continually since ArchiCAD 4.5, 4.5.5, 5, 5.1, 6, 6.5, 7, 8, 8.1, 9, 10, 11, 12, 13, 15, 18, 21, 22, 25, now testing 27

Member of Architalk since 2003, but missed the migration to Graphisoft.

(where have all my original posts gone?)

Member of Architalk since 2003, but missed the migration to Graphisoft.

(where have all my original posts gone?)
