What should I do if the wall connection is abnormal?

[LeeJaeYoung]

What should I do if the wall connection is abnormal?

What should I study?

https://drive.google.com/file/d/158ynHLPPX5e80R6cT3n_r6ao9nTRd8Iu/view?usp=sharing

[Christophe Fortineau]

Hello LeeJaeYoung,

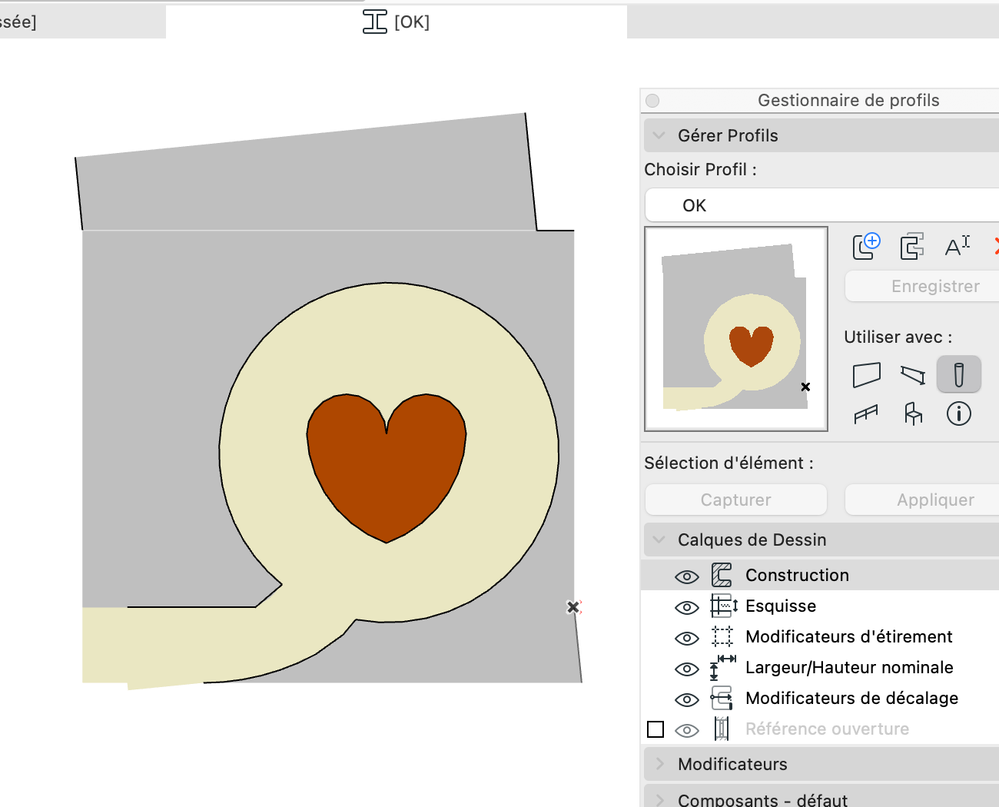

Despite moving the reference lines of each wall (in pairs), I did not manage to create a perfect match and I came to a radical and effective solution. I make a personalized column profile on which the 4 walls are connected without crossing.

[Mahmoud Qenawi]

I see this post will benefit you much

https://community.Graphisoft.com/t5/Design-forum/Composite-walls-wrkflow/td-p/326159

[LeeJaeYoung]

I don't quite understand.
I would appreciate it if you could show me a more detailed explanation or image.

[Christophe Fortineau · Accepted solution]

Hello LeeJaeYoun,

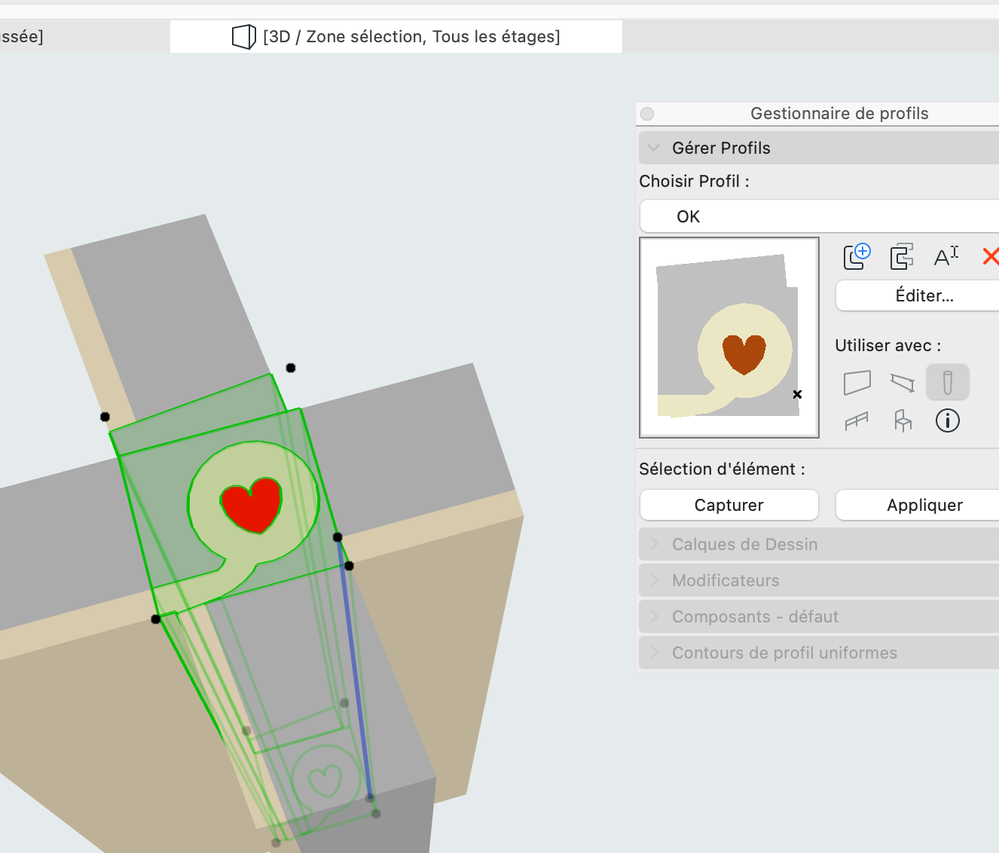

Here is some image of the principle of a custom post to join 4 walls.

[LeeJaeYoung]

thank you ^^

What you're saying is that it's good to have a complex column at the joint point.
Is this the default way in Archicad?
With columns and walls ...solve all planes.

May I ask you one more question?
How do you deal with liquid waterproofing and wallpaper?
I'm thinking of treating the liquid waterproofing with Morph.
However, I am thinking about what to do with the wallpaper.

[Christophe Fortineau]

Hello,

"What you're saying is that it's good to have a complex column at the joint point."

You are right but what I am saying is to get a solution about your request 😉

Please note that it is nevertheless necessary to plan to modify the classification of the connection column. It is not a column but a wall which must therefore be exported as type ifcwall.

"Is this the default way in Archicad?"

I do not think so ! It is mine for sure.

"How do you deal with liquid waterproofing and wallpaper?"
I use SEO to get watter into a gsm object about a pool or watter into a mesh to get a pond.

About wallpaper I only use model tab like below but you are able to use morph too.

 

[LeeJaeYoung]

Thank you so much

[LeeJaeYoung]

I'll ask you one more question ^^
How do I get the concrete face treatment process to appear on the schedule?
Concrete Face Treatment: To level the concrete surface by grinding the concrete surface.

[Christophe Fortineau]

LeeJaeYoung,

I am not able tu understand your request with my poor english 😕
