Newbie 3D question
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06
12:15 PM
- last edited on
2025-01-30
10:56 AM
by
Molinda Prey
I'm an AutoCAD user who's just started to learn ArchiCAD. I'm really stuck on one thing. I can't get anything to show up in the 3D perspective window (parallell projection works fine). All I get is a little cloudlike cursor icon, and I can't do anything. I've been looking through manuals and help files, but with no luck so far. I'm using ArchiCAD 7.
- Labels:
-
Performance
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 12:39 PM
Have a look if your '3D Navigation window' is visible. There you find some buttons to navigate. If theres nothing to see in central perspective mode, but in parallel projection try to change your view point and camera direction. Best adjusted in the first dialog of your 3D menu.
Be aware, that you have some walls, slabs or roofs in the floor plan. No components, no 3D.
Have a look at the '3D-windows settings' of the 3D menu. The relevant stories have to be enabled.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 01:26 PM
Thank you for your reply. I've checked all the things you mentioned, and I've been trying to move the camera, but without any luck. Is there any way to see the camera on the plan?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 03:20 PM
myosotis wrote:Go to Image/3D Projection Settings.
Hi,
Thank you for your reply. I've checked all the things you mentioned, and I've been trying to move the camera, but without any luck. Is there any way to see the camera on the plan?

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 05:28 PM
myosotis wrote:Yes, if it is placed.
Thank you for your reply. I've checked all the things you mentioned, and I've been trying to move the camera, but without any luck. Is there any way to see the camera on the plan?
Did you place the camera? You can view the 3D without a camera placed, too.
If you want a camera that sees what is seen in the 3D window at the moment, do what the attachment says.
HTH,
ArchiCAD since 4.55 ... 1995
HP Omen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 06:16 PM
1) place camera in floor plan as you want
2) select camera
3) press ctrl+3 or cmd+3(mac) to go to the 3d window
4) bang head on desk as you realize that it was too easy
AC28 US/INT -> AC08
Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 06:42 PM
ejrolon wrote:Right click on the camera, select 3D Window from the context menu ... two clicks.
4) bang head on desk as you realize that it was too easy
Now that the table is gone, the hole in the floor is getting bigger

ArchiCAD since 4.55 ... 1995
HP Omen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 09:08 PM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 10:46 PM

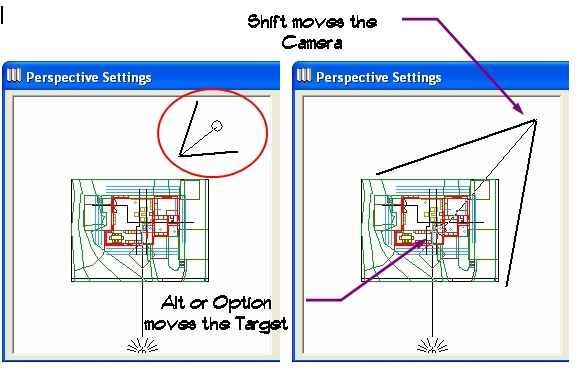

If you can not see the Target holding down the Alt key (WIN) or Option key (MAC) and clicking on what you want to look at sets the Target; holding down the Shift key and clicking where you would like the Camera to be sets the Camera.
BTW, what you see (of your model) in this window is dependent on what you see in your plan view (zoom out to see more)
Woody

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2005-01-06 10:55 PM
Aslo check your camera height and view height so you arnt looking over the top of your building
John Hyland : ARINA : www.arina.biz
User ver 4 to 12 - Jumped to v22 - so many options and settings!!!
OSX 10.15.6 [Catalina] : Archicad 22 : 15" MacBook Pro 2019 [/size]
