Intersection problem between composite wall and column

Sefa Yakut · ‎2023-10-05

Hello, I have question for you.

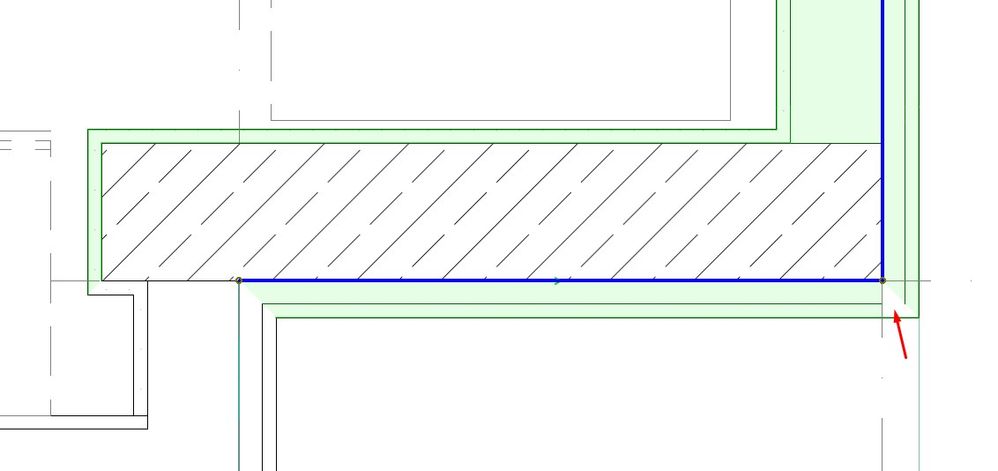

There is intersection problem between my composite wall and column. As you see reference lines are ok but in 2d lines are not intersecting and in 3d there is no plaster on my column rather it shows my insulation which is in outside.

Thanks for your help...

Steve Jepson · ‎2023-10-06

odd detail, but it will clean up ok.

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

Mahmoud Qenawi · ‎2023-10-06

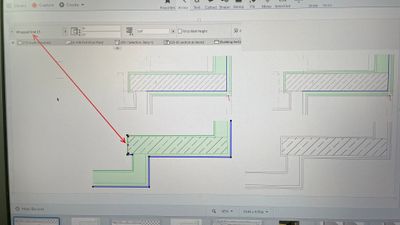

I see the problem in 2D is coming from an element at the extension of the wall at the red arrow so try to reset its reference line.

In 3D there's an option for the column lets composite layers wrap around the column you can activate from the column selection settinungs.

AC 28 INT 3110/WIN 11
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB
