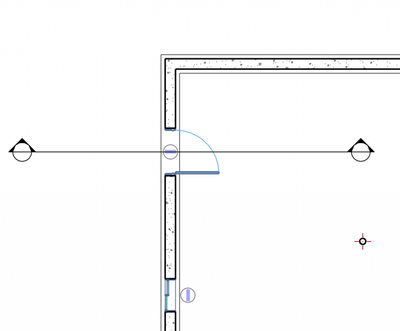

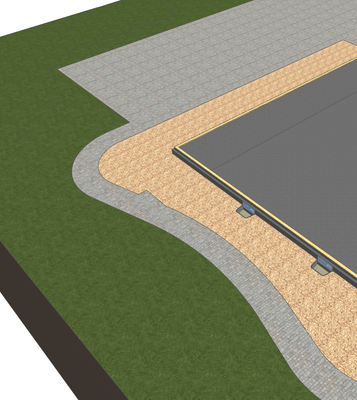

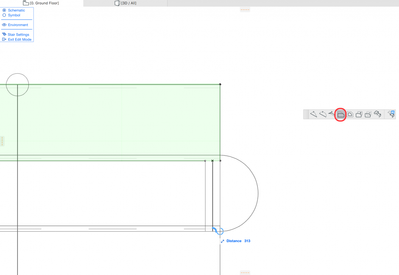

How to Create a Basement Stair and Bulkhead Door

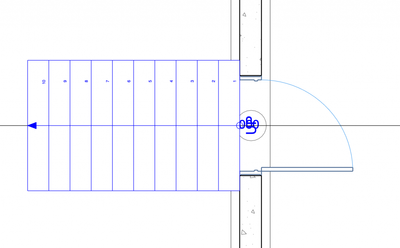

In order to efficiently model a basement stair and bulkhead door (i.e. not creating extra cutting bodies) elements need to be created and cut in a specific order. These steps are listed below 1. Make sure that a mesh has been placed around the outsid...

wp-content_uploads_2019_08_Screen-Shot-2019-08-07-at-9.23.03-AM.png wp-content_uploads_2019_08_Screen-Shot-2019-08-02-at-2.26.26-PM-1024x896.png wp-content_uploads_2019_08_Screen-Shot-2019-08-02-at-3.44.22-PM-1024x847.png wp-content_uploads_2019_08_Screen-Shot-2019-08-02-at-3.51.51-PM-1024x634.png

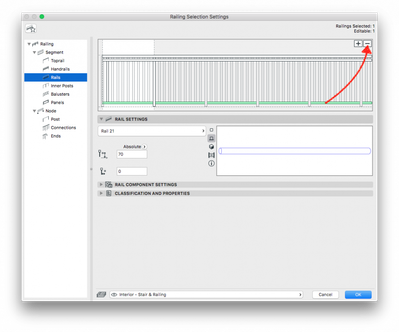

How to Create a Railing with Evenly Spaced Posts on a Mesh

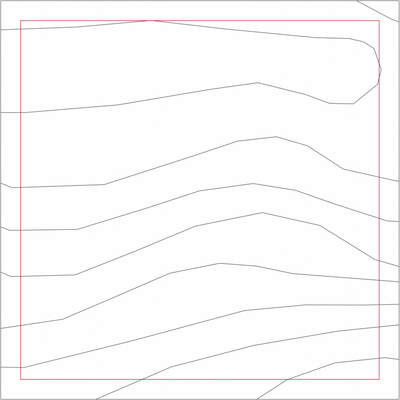

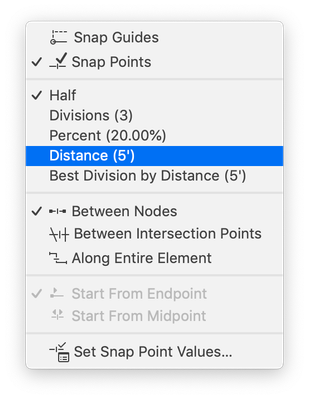

Follow the steps below to create a railing with evenly spaced posts that follows the contour of a mesh. 1. Create a poly line where the railing will be. 2. Open the Set Snap Point Values dialogue box. 3. In the Snap Point Values dialogue box, set the...

wp-content_uploads_2019_08_Screen-Shot-2019-08-01-at-2.39.24-PM-1024x1024.png wp-content_uploads_2019_08_Screen-Shot-2019-08-01-at-2.39.51-PM.png wp-content_uploads_2019_08_Screen-Shot-2019-08-01-at-2.40.03-PM.png wp-content_uploads_2019_08_Screen-Shot-2019-08-01-at-2.40.12-PM.png

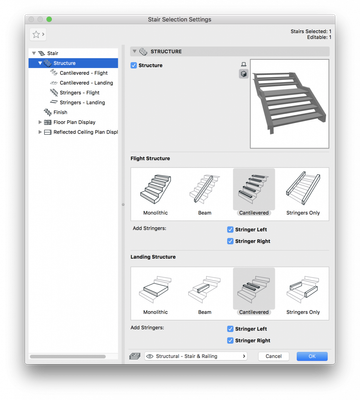

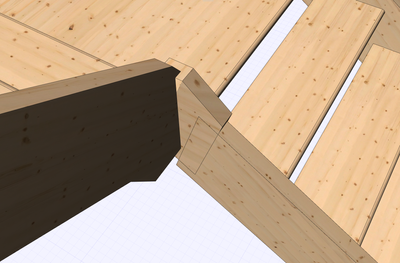

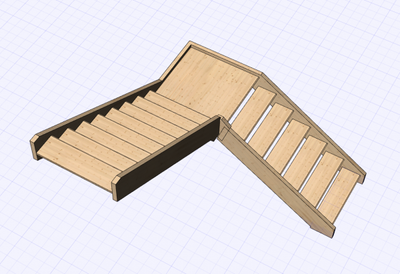

L and U-shaped Stairs with Stringers

In certain cases when users are modelling open or closed stringer stairs, the corner stringer piece does not get created, or gets created but the geometry of it is faulty. The reason behind such issues always lies in some kind of geometrical controve...

wp-content_uploads_2020_01_Screen-Shot-2020-01-06-at-11.04.18-e1578305714166.png wp-content_uploads_2020_01_Screen-Shot-2020-01-06-at-13.19.20-e1578313253932.png wp-content_uploads_2020_01_Screen-Shot-2020-01-06-at-13.22.44.png wp-content_uploads_2020_01_Screen-Shot-2020-01-07-at-16.01.20.png

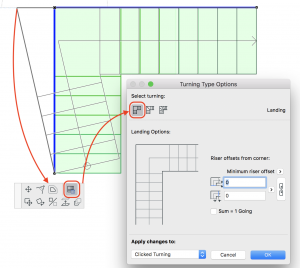

Stair Tool Basics - Stair Turning and Segment types

Turning stairs can be constructed in 2 different methods: using turning type method or segment type method. Let's have a quick look at the main aspects of those two types. Turning Type Turning type can be used in 3 ways: Landing Winder with Equal Ang...

wp-content_uploads_2018_01_Landing-300x268.png wp-content_uploads_2018_01_Winder-with-equal-angles-300x268.png wp-content_uploads_2018_01_Winder-300x268.png wp-content_uploads_2016_06_Info_18x18.png

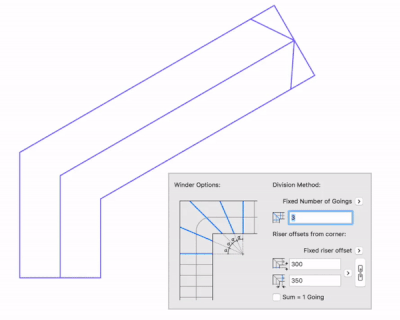

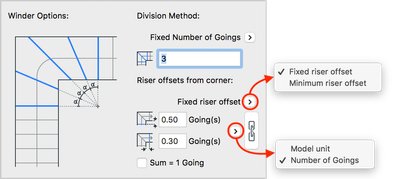

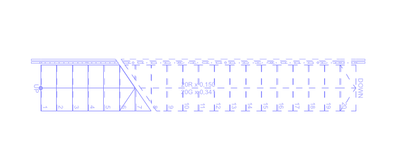

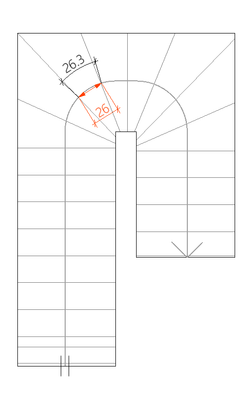

Stair Tool Basics - How to create Stairs with Equal Angle winders

In a previous Article we have explained how Stair Segments and Turnings work in General. In this article we will show you 2 examples of how to use them to create Stairs with Equal Angle winders, and explain how this winder type works in general. How ...

wp-content_uploads_2018_02_Equal-Angle-Explanation.gif wp-content_uploads_2018_02_Division-Method-1.png wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2018_02_Riser-Offset-settings.png

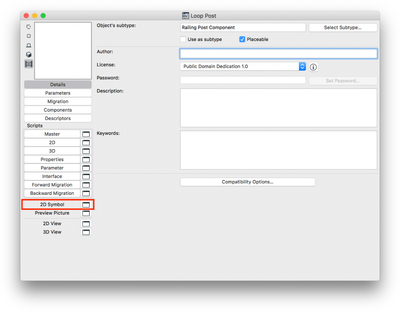

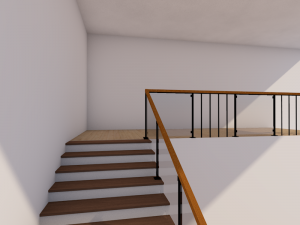

Railing Tool Basics - How to create a custom Railing Post?

The new Stair and Railing Tool include GDL sub-elements. Many of them are pre-defined and available by default, through the element and component settings dialogs. To create your own sub-element, you can create and customise an element and save it as...

wp-content_uploads_2018_01_front-e1516965580276.jpg wp-content_uploads_2018_01_1-2.png wp-content_uploads_2018_01_segment.png wp-content_uploads_2018_01_3.png

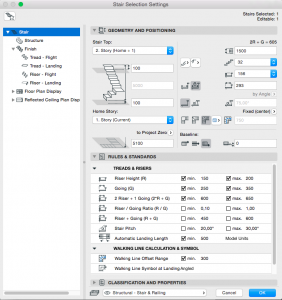

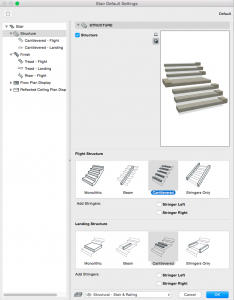

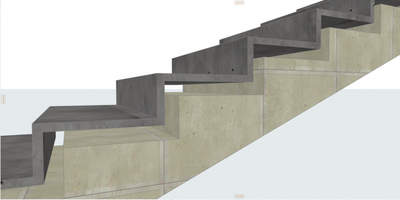

Stair Tool Basics - How to create Metal Plate and Metal Pan Stairs

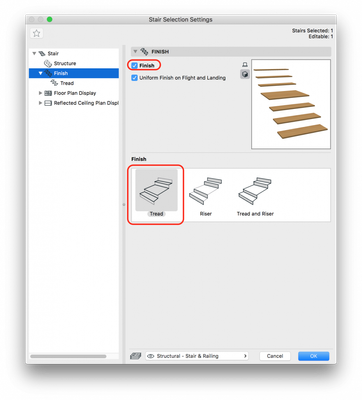

This article shows general examples of how to create Metal Plate and Metal Pan Stairs. The two types are very similar to each other in structure, so the way to create them is similar as well: We will use a cantilevered structure, with profiled string...

wp-content_uploads_2017_10_Metal-Pan-and-Plate-1024x243.png wp-content_uploads_2017_10_Stair-Selection-Settings-922x1024.png wp-content_uploads_2017_10_Structures-922x1024.png wp-content_uploads_2017_10_Set-Stringer-636x1024.png

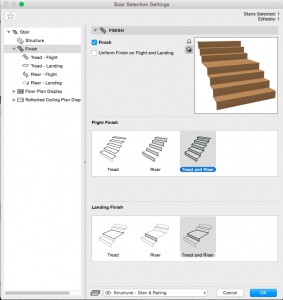

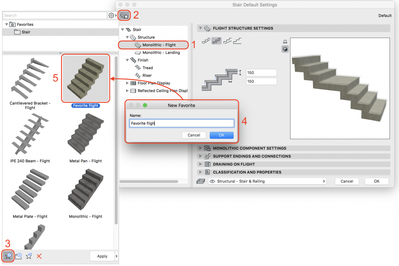

Creating Favorites for Stairs and Railings and their Sub-elements

Creating Favorites hasn't changed with the Stair and Railing Tool. Since it is a hierarchical element, it is a very similar method creating Favorites for a Curtain Wall and its sub-elements. Favorites for Stairs Stair: Structures and Finishes Once yo...

wp-content_uploads_2017_10_Saving-Favorite-Stair-Flight-1024x682.png wp-content_uploads_2017_10_favorite-tread.gif wp-content_uploads_2017_10_Redefine-Favorite.png wp-content_uploads_2017_10_favorite-stair.gif

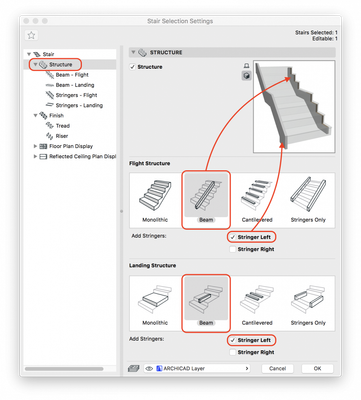

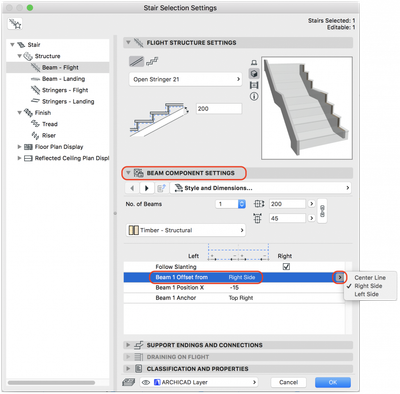

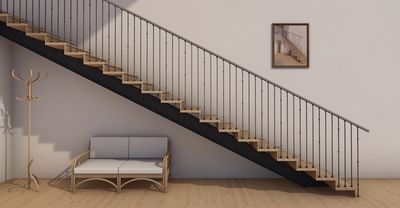

Stair Tool Basics - Open Stringer Stairs

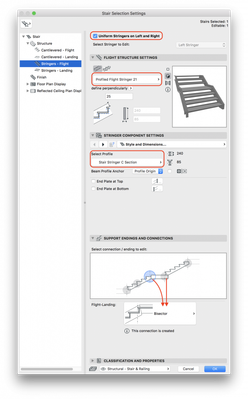

In this article we are going to create an Open Stringer Stair. To achieve this type of Stair structure, we will choose 'Beam' structure for the flight (and landing). For the opposite edge of the Stair add Stringer by ticking the box, optional 'String...

wp-content_uploads_2017_09_Open-Stringer-Stairs-1024x773.png wp-content_uploads_2017_09_OS-Stair-Structure-923x1024.png wp-content_uploads_2017_09_Open-Stringer-Beam-flight-1024x679.png wp-content_uploads_2017_09_Open-Stringer-Beam-Offset-1024x1009.png

Railing Tool Basics - Classic Style Railing

In this article we will show you how to create a traditional cast iron Railing from Custom Panels. (If you are interested how to model the stair is used in that example, click here). Draw the two following shapes from Morph – Surface, and then extrud...

wp-content_uploads_2017_09_02-trad-rail-e1504261391528-300x121.png wp-content_uploads_2017_09_01-traditional-railing-e1504261308511-300x147.png wp-content_uploads_2017_09_Screen-Shot-2017-09-01-at-08.59.46-e1504261512164-300x278.png wp-content_uploads_2017_09_traditional_stair_2-Picture3-1024x459.png

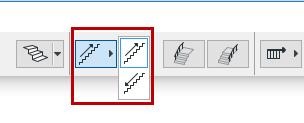

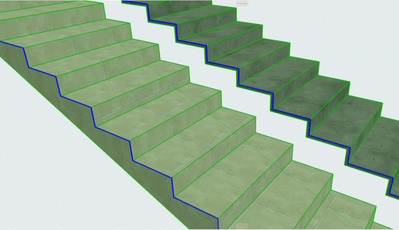

Stair Tool Basics - How to place stairs using the new Stair Tool

To place a stair you need to draw its Baseline (blue line), which is basically a polyline. So the input and the connected Pet Palette options are similar to placing the polyline in ARCHICAD. The Stair 'Input Method' (Upward / Downward) defines wherev...

wp-content_uploads_ac21_help_03-1-elements-virtual-building_StairUpDown.png wp-content_uploads_2017_08_staright_stair-1024x695.png wp-content_uploads_2017_08_L_shape.gif wp-content_uploads_2017_07_U_shape_stair.gif
apolgar Graphisoft
  • 440 Views
  • 0 comments
  • 0 likes

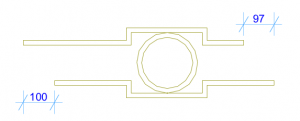

Stair Tool Basics - How to create metal spiral stair

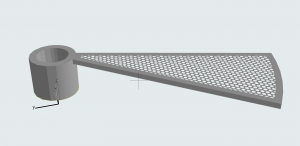

This article provides a step-by-step description for creating a metal spiral stair having a column in the middle. The unique thing in this example is that the structure of the staircase is part of the tread. To see how to place a general spiral stair...

wp-content_uploads_2017_08_steel_tread-300x146.png wp-content_uploads_2017_08_steel_Spiral_stair_settings.png wp-content_uploads_2017_08_steel_spiral_stair_settings2-926x1024.png wp-content_uploads_2017_08_steel_spiral_stair_settings3-926x1024.png
apolgar Graphisoft
  • 3087 Views
  • 0 comments
  • 1 likes

Missing Railing in hotlinks

Affected version: 21 | Severity: fixed | ID: 229227 Issue: If a Railing is associated to a Hotlinked Element (in A.pln), it will work correctly in the file where it was created (in A.pln). In case that you place this file in another project as a Hotl...

wp-content_uploads_2017_12_missing-railin-in-hotlink-1024x103.png wp-content_uploads_2016_06_Info_18x18.png

Stair Tool Basics - Automatic Landing

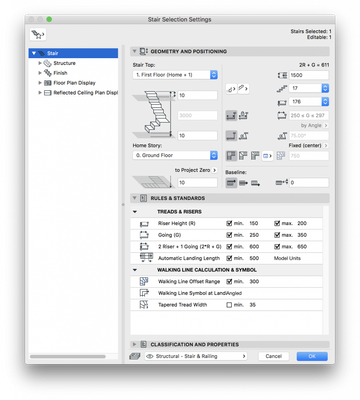

The new Stair Tool has the feature to add landing automatically during creation of the stair. Landing length can be defined in the Stair Settings under Rules & Standards: Automatic landing can be placed with one click during Stair creation. Start wit...

wp-content_uploads_2017_08_Automatic-Landing-Settings-899x1024.png wp-content_uploads_2017_08_stair_automatic_landing.gif wp-content_uploads_2017_08_Automatic-Landing-Goings-1024x97.png wp-content_uploads_2017_08_stair_automatic_landing_2.gif

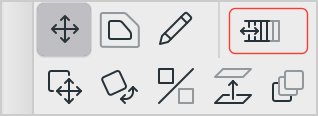

Railing Tool Basics - Convert Pattern To Segment Length

This option can be useful for creating different Patterns in a Railing Segment. By default in one Segment one Pattern is repeated (A Segment is the part of the Railing between two Nodes). 'Converting Pattern to Segment Length' makes it possible to ed...

wp-content_uploads_2017_07_rail_convert_pattern-300x225.png wp-content_uploads_2017_07_Convert_Pattern_lenght.png wp-content_uploads_2017_07_railing_edit_mode_palette.png wp-content_uploads_2017_07_selecting_-a_segment.png
apolgar Graphisoft
  • 601 Views
  • 0 comments
  • 0 likes

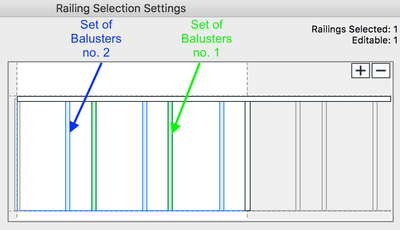

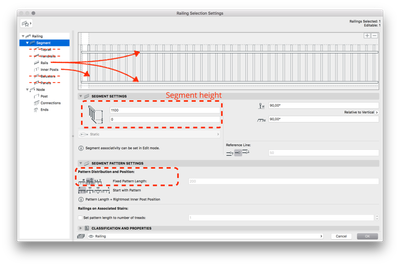

Railing Tool Basics - Pattern Distribution Settings

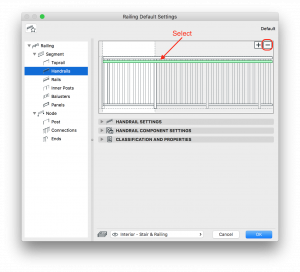

Introduction In the Railing Tool settings a Pattern can be defined. Toprail, Handrail, Rails, Inner Posts, Balusters, Panels can be added to the Pattern, which can be repeated within the Railing Segment. This article describes the distribution logic ...

wp-content_uploads_2017_07_node_posts-1.png wp-content_uploads_2017_07_posts-2.png wp-content_uploads_2017_07_Balusters.png wp-content_uploads_2017_07_divide_segment.png
apolgar Graphisoft
  • 884 Views
  • 0 comments
  • 0 likes

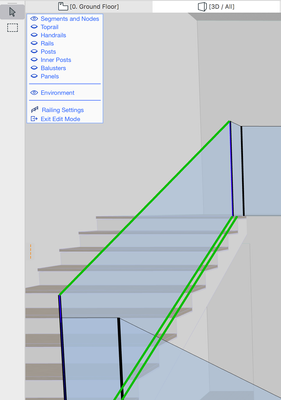

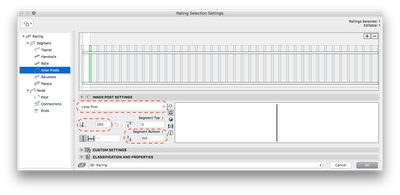

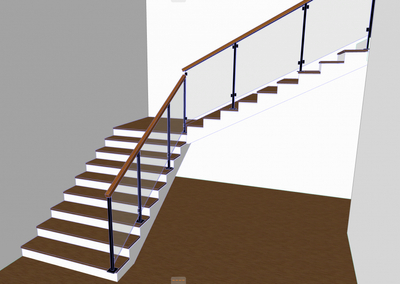

Railing Tool Basics - Glass Panel Railing

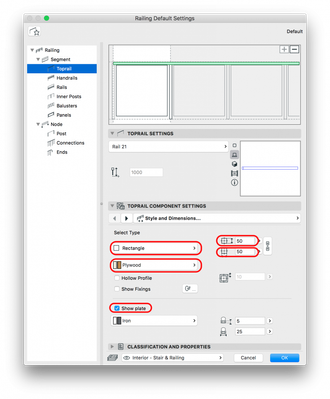

Introduction This article presents how to create a glass panel railing with posts. We used an L-shaped staircase where the Riser Offset is set to 0. In this case only one post will be added by the intersection point of the two flights. Let's start Ac...

wp-content_uploads_2017_07_Screen-Shot-2017-09-07-at-11.18.27-1024x726.png wp-content_uploads_2017_07_edit_pattern-300x272.png wp-content_uploads_2017_07_Inner_Post.png wp-content_uploads_2017_07_TopRail_settings-846x1024.png
apolgar Graphisoft
  • 2802 Views
  • 0 comments
  • 0 likes

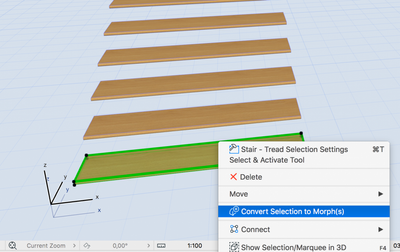

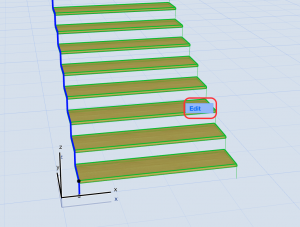

Stair Tool Basics - Custom Tread

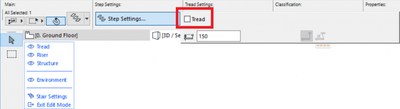

It is possible to save elements as Library Object which can be used as custom Treads. Any ARCHICAD element can be turned into a custom Tread Library Object. This article describes you how to create a custom Tread using the Morph Tool. Activate the St...

wp-content_uploads_2017_07_stair_with_custom_treads-300x241.png wp-content_uploads_2017_07_Edit_Mode-300x227.png wp-content_uploads_2017_07_selecting_the-first_step-282x300.png wp-content_uploads_2017_07_Convert_secelction_to-Morph-1024x645.png
apolgar Graphisoft
  • 1948 Views
  • 0 comments
  • 1 likes

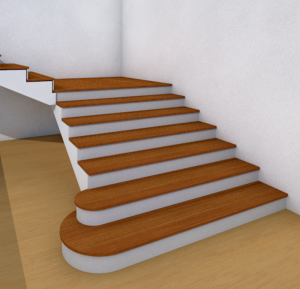

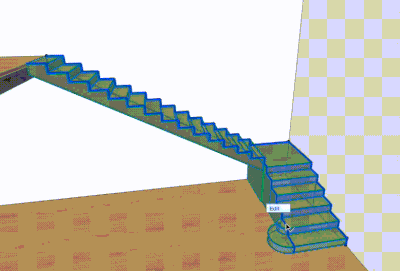

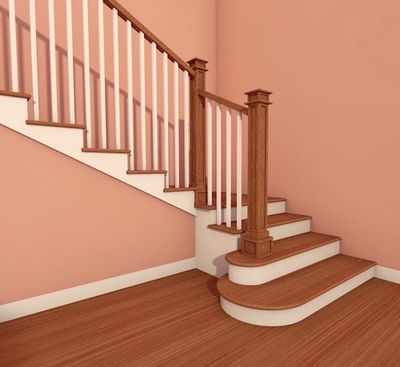

Stair Tool Basics - Bullnose Stair

This article outlines how to model a stair with bullnose steps. To see how to place a traditional railing on it, click here. Activate the Stair Tool and place any Stair of choice (Bullnose stairs are mostly made of wood). Navigate to the floor plan a...

wp-content_uploads_2017_07_bullnose_render-300x289.png wp-content_uploads_2017_07_Bullnose_stair_1-1024x664.png wp-content_uploads_2017_07_Bullnose_stair_2-1024x687.png wp-content_uploads_2017_07_Bullnose_stair_3-1024x705.png
apolgar Graphisoft
  • 945 Views
  • 0 comments
  • 0 likes

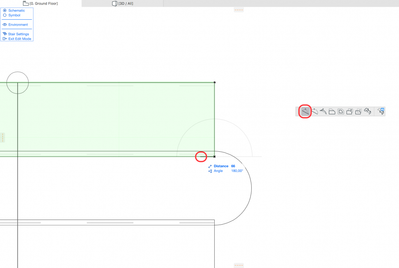

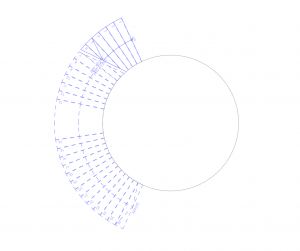

Stair Tool Basics - Spiral Stair

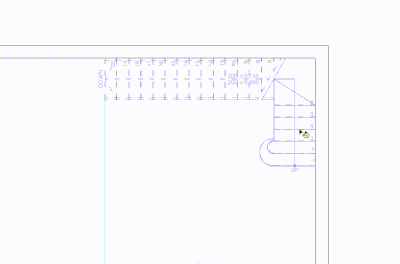

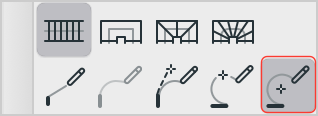

There are two ways to create a spiral stair using the new Stair Tool: using the Magic Wand using the 'Arc by Centerpoint' command from the Pet Palette during the input Using the Magic Wand Place a circle on the floor plan ( Guide Line Segment,Line To...

wp-content_uploads_2017_07_Spiral_stair_Magis_Wand.gif wp-content_uploads_2017_07_baseline_spiral_stair_left-300x251.png wp-content_uploads_2017_07_spiral_stair_Pet_Palette.png wp-content_uploads_2017_07_Baseline_right-300x102.png
apolgar Graphisoft
  • 13475 Views
  • 1 comments
  • 1 likes

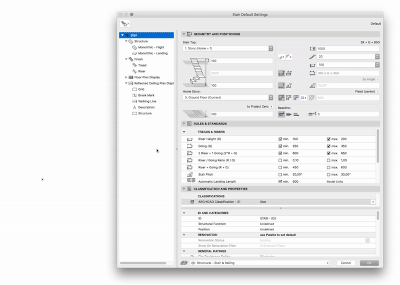

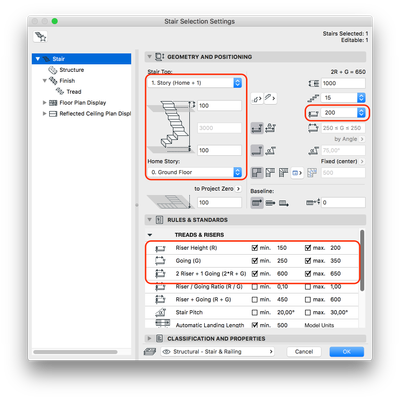

Stair Tool Basics - U-shape Stair with equal flights

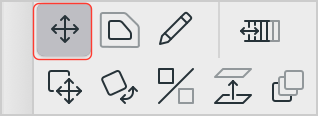

Let's place a U-shape stair: Activate the Stair Tool. Open the 'Stair Default Settings' and make sure that the following settings are used (Story height: 3000 mm): Click ok. Click on the floor plan to begin inputting the Stair. Start drawing the stai...

wp-content_uploads_2017_07_Stair_Settings.png wp-content_uploads_2017_07_U_shape_stair.gif wp-content_uploads_2017_07_Pet_Palette_rearrange.png wp-content_uploads_2017_07_Pet_Palette_stretch.png
apolgar Graphisoft
  • 5039 Views
  • 0 comments
  • 0 likes

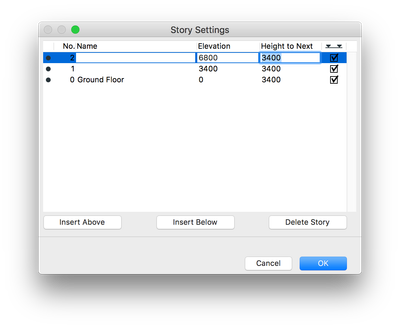

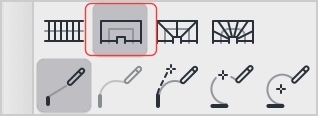

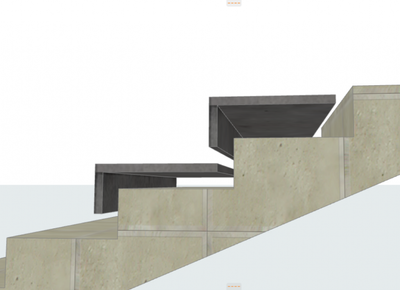

Stair Tool Basics - Custom Stair with Steel Beam Support

This article presents you a step-by-step description for modelling a custom stair (designed by Építész Stúdió). It shows how to model the staircase using the new Stair Tool. Things needs to be known about the staircase: Story height is 3400 mm. This ...

wp-content_uploads_2017_07_Stair_cropped-1024x600.png wp-content_uploads_2017_07_GS_Stair_Story_height.png wp-content_uploads_2017_07_Stair_default_settings.png wp-content_uploads_2017_07_Stair_Pet_Palette_Landing.png
apolgar Graphisoft
  • 1973 Views
  • 0 comments
  • 0 likes

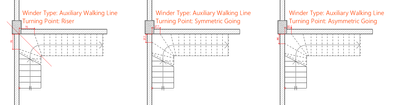

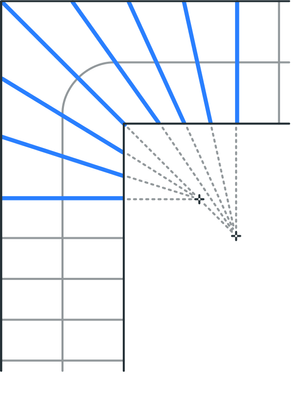

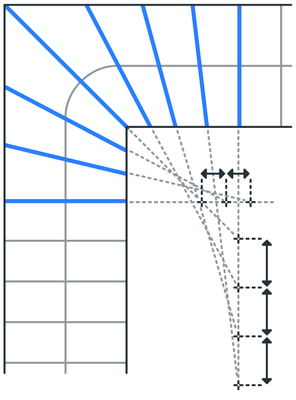

Winder Types in ARCHICAD

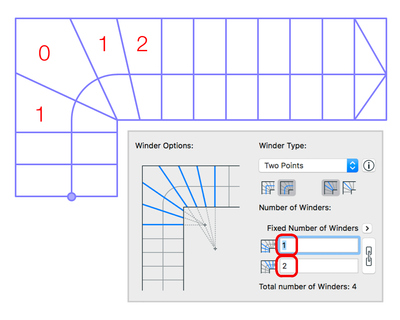

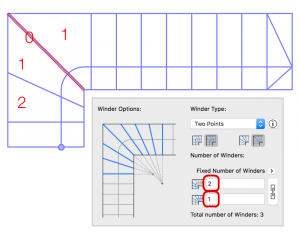

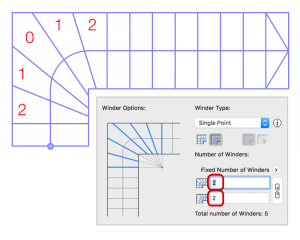

Also see: Stair Tool Basics - How to create Stairs with Equal Going/Run winders Stair Tool Basics - How to create Stairs with Equal Angle winders There are four different methods available to construct a Winder with Equal Goings (that is, all goings ...

wp-content_uploads_2017_03_single_point-222x300.png wp-content_uploads_2017_03_two_points_risermiddle.png wp-content_uploads_2017_03_two_points_tread_middle.png wp-content_uploads_2017_03_fluchtlinien_riser_middle.png
apolgar Graphisoft
  • 11819 Views
  • 0 comments
  • 0 likes

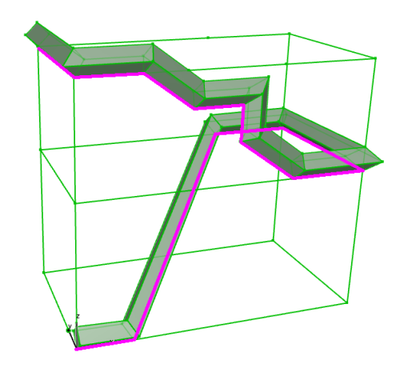

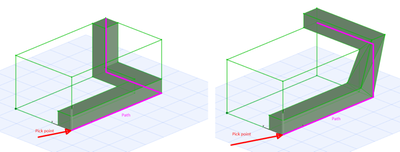

How to create a Morph Tube

Have you tried to trace a line in space with the morph tool to make handrails while Archicad rotated the anchor point and tube surface when changing planes? This article will show you step by step how to avoid this problem. 1. Introduce a horizontal ...

wp-content_uploads_TubeTwistWorkaround-e1417101776258.png wp-content_uploads_TubePickPoint-e1417101759518.png wp-content_uploads_TubeSpatial-e1417101767721.png wp-content_uploads_TubeNonTwisting-e1417101739604.png

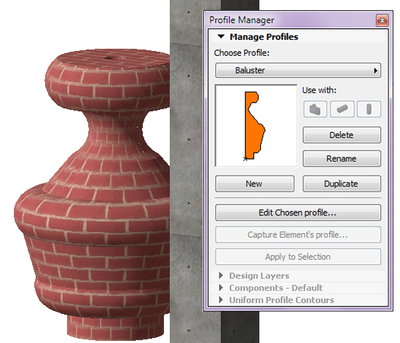

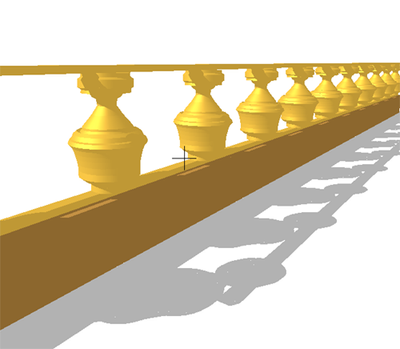

How to create Balusters in Archicad

Revolved elements can be created using Complex Profiles, Shells or Morphs. In this example we are using Complex Profiles to create custom-shaped balusters. Step 1: Draw Profile Create a Complex Profile of the Baluster that you want to use. Make sure ...

wp-content_uploads_archicadwiki_complexprofilebalustrades--balustercopied1.png wp-content_uploads_archicadwiki_complexprofilebalustrades--balusterready2.png wp-content_uploads_archicadwiki_complexprofilebalustrades--material.png wp-content_uploads_archicadwiki_complexprofilebalustrades--balusterjo.png
automata Graphisoft
  • 1148 Views
  • 0 comments
  • 0 likes
